Overview
The X7412 is a high-performance FTTH fiber optic modem designed for Fiber-to-the-Home (FTTH) applications. This ONU XPON dual-band AC1200 device supports both GPON and EPON networks, delivering 1.25G upstream and 2.5G downstream speeds. With 4*1GE Ethernet ports, dual-band WiFi (2.4G and 5.8G), and VoIP support, the X7412 is perfect for home and business networks, offering seamless connectivity and advanced features.
FTTH Fiber Optic Modem X7412 Key Features
- Dual-Band WiFi AC1200: 2.4G (300Mbps) and 5.8G (866Mbps) for up to 1200Mbps wireless speeds.
- Multi-Port Connectivity: 4*1GE Ethernet ports for high-speed wired connections.
- VoIP Support: Integrated FXS port compliant with G.711 codec for voice services.
- Dual-Mode GPON/EPON: Auto-adapts to OLT modes (GPON/EPON) with up to 20km transmission range.
- Advanced Management: TR-069 remote configuration, Layer 3 NAT, VLAN, QoS, and firewall support.
- EasyMesh & WPS: Simplified WiFi setup and extended coverage with EasyMesh compatibility.
FTTH Fiber Optic Modem X7412 Hardware Specifications

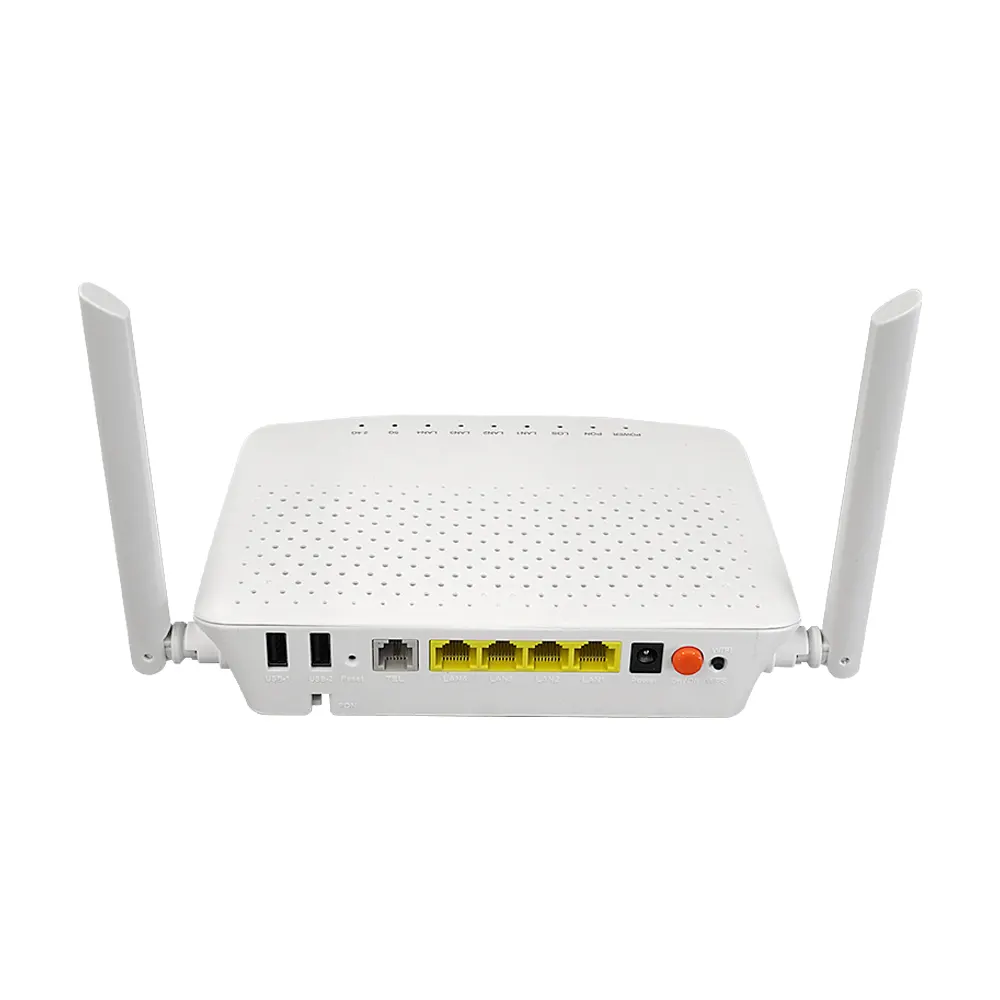

| Interfaces |
1*G/EPON (SC/APC), 4*GE, 1*FXS (RJ11), 2*USB, 2.4G/5.8G WiFi |
| Power Supply |
100-240V AC, 50-60Hz | DC 12V/1.5A |
| LED Indicators |
POWER, PON, LOS, LAN1-LAN4, 5G, 2.4G |
| Dimensions |
220mm x 142mm x 35mm (W x D x H, without antenna) |
| Weight |
0.32Kg |
| Power Consumption |
<18W |
Network Specifications
| PON Interface |
- GPON: 2.488G Down / 1.244G Up
- EPON: 1.244G Symmetric
- Wavelength: 1310nm (Up), 1490nm (Down)
- Sensitivity: -27dBm
|
| Wireless (WiFi AC1200) |
- 2.4G: 802.11b/g/n | 300Mbps
- 5.8G: 802.11a/n/ac | 866Mbps
- Antenna: 2x External 2T2R (5dBi gain)
|
Software & Management
| Protocols |
IPv4/IPv6, TR-069, IGMP V2/MLD, PPPoE/DHCP/Static IP |
| Security |
Firewall, DMZ, UPNP, ACL, WPA2/WPA3 |
| Advanced Features |
Hardware NAT, VLAN 802.1Q, QoS 802.1P, DDNS, ALG |
Environmental Specifications
| Operating Temperature |
-20℃ ~ +50℃ |
| Humidity |
5% ~ 95% (non-condensing) |
