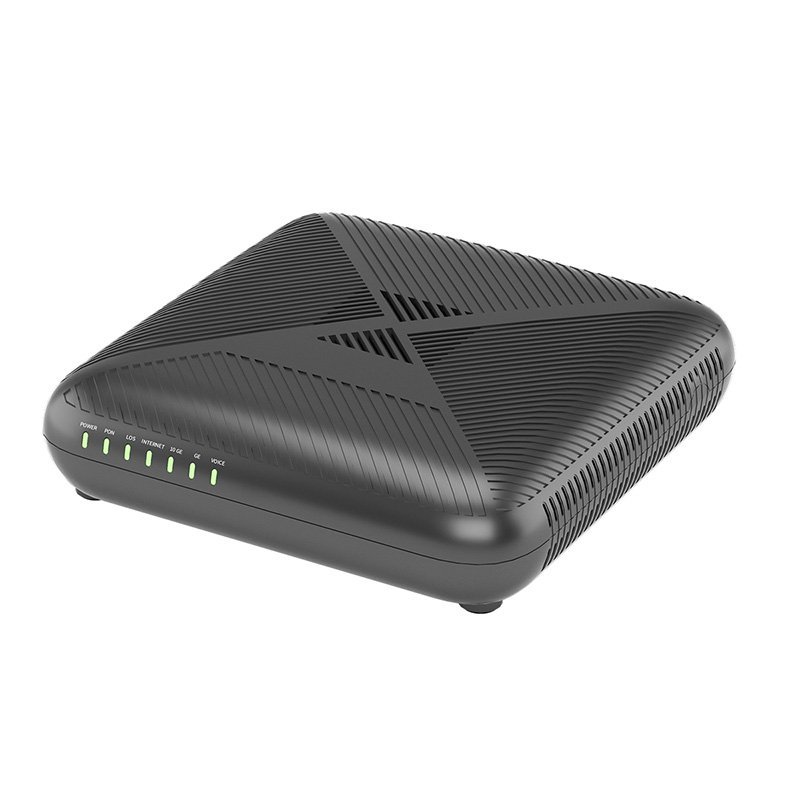

X67S XGS-PON ONU ONT – High-Speed Fiber Optic Modem

Overview

The XGS-PON ONU ONT X67S is a next-generation XGS-PON optical network terminal (ONT) designed for high-speed fiber-to-the-home (FTTH) applications. This XGS-PON ONU ONT supports symmetric 10Gbps upstream and downstream speeds, making it an ideal choice for operators and users seeking a reliable and high-performance fiber optic modem. With 1*10GE and 1*1GE Ethernet ports, the X67S is perfect for demanding applications such as 4K streaming, online gaming, and large file transfers.

Key Features

• High-Speed Connectivity: 1*10GE and 1*1GE Ethernet ports for ultra-fast data transfer.
• XGS-PON Technology: Supports symmetric 10Gbps upstream and downstream speeds.
• GPON Standards: Compliant with ITU-T G.984 standards.
• Advanced QoS: WMM and bandwidth control for optimized traffic management.
• Robust Security: SPI firewall, DoS protection, and IP/MAC address filtering.
• Compact Design: Small form factor (90mm x 73mm x 25.2mm) with low power consumption.

XGS-PON ONU ONT X67S Hardware Specifications

Software Features

• Quality of Service (QoS): WMM and bandwidth control for optimized traffic management.
• Port Forwarding: L2/L3 forwarding and L3 NAPT support.
• VPN: 802.1Q tag VLAN, VLAN transparent mode, VLAN translation mode, and VLAN trunk mode.
• Access Control: Local management control, host list, access schedule, and rule management.
• Firewall Security: SPI firewall, DoS protection, IP/MAC address filtering, and domain filtering.
• Management: Access control, local management, and remote management options.

Environmental Specifications

Package Contents

• 1 x XGS-PON ONT
• 1 x Power Adapter
• 1 x RJ11 Cable

Certifications

The X67S is certified with CE and RoHS compliance, ensuring high-quality and environmentally friendly standards.
