Overview
2.4G Wifi ONU modem Key Features
- Dual-Mode GPON/EPON: Auto-adaptive to OLT modes with 20km transmission range.
- High-Speed Connectivity: 1*GE and 3*FE ports for flexible wired connections.
- 2.4G WiFi: IEEE 802.11b/g/n support with up to 300Mbps speeds and 2 external 5dBi antennas.
- VoIP Support: Integrated FXS port compliant with G.711/G.723/G.726/G.729 codecs.
- Advanced Security: NAT, firewall, and IPv4/IPv6 dual-stack support.
- Plug-and-Play: Auto-detection, configuration, and firmware upgrades.
2.4G Wifi ONU modem Hardware Specifications

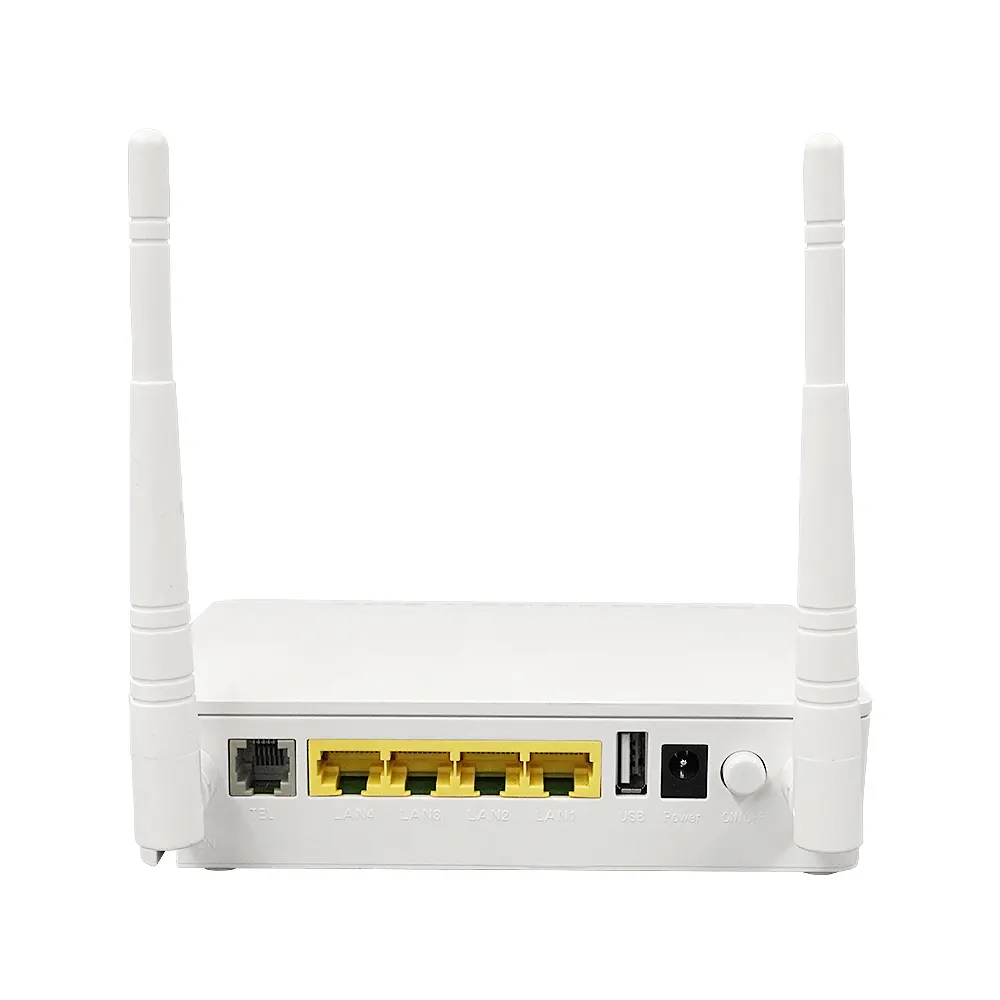

| Interfaces | 1*G/EPON (SC/UPC), 1*GE, 3*FE, 1*FXS (RJ11), 1*USB 2.0 |
|---|---|
| Wireless | 2.4GHz WiFi | 2T2R MIMO | 300Mbps |
| Power Supply | DC 12V, 1/1.5A |
| Dimensions | 150mm x 140mm x 35mm (L x W x H) |
| Weight | 0.24Kg |
| Power Consumption | ≤10W |
Network Specifications
| PON Interface |
|
|---|---|
| WiFi (2.4G) |
|
Software & Management
| Features | QinQ VLAN, IGMP Snooping, IPv6, GR-909 Line Testing |
|---|---|
| Security | Firewall, NAT, MAC/IP Filtering |
Environmental Specifications
| Operating Temperature | 0°C ~ +50°C |
|---|---|
| Storage Temperature | -30°C ~ +75°C |
| Humidity | 5% ~ 90% (non-condensing) |
