Overview
Key Features
- Dual-Mode GPON/EPON: Supports both GPON and EPON standards for flexible deployment.
- High-Speed Connectivity: 4*1GE Ethernet ports for gigabit wired connections.
- Dual-Band WiFi5: 2.4G (300Mbps) and 5G (867Mbps) for up to 1200Mbps wireless speeds.
- VoIP Support: Integrated VoIP port for voice communication, compliant with G.711, G.729, and G.722 standards.
- USB Port: USB interface for additional connectivity options.
- Advanced Security: Supports WPA/WPA2/WPA3, firewall, and DoS protection.
- Compact Design: Small form factor (170mm x 151mm x 195mm) with low power consumption.
WiFi5 XPON ONT Router X3412 Hardware Specifications
| Chip Model | RTL9607 + RTL8192 + RTL8812 |
|---|---|
| Memory | DDR3: 256MB / FLASH: 128MB |
| WiFi Chip | 2.4G & 5G: RTL8192 + RTL8812 |

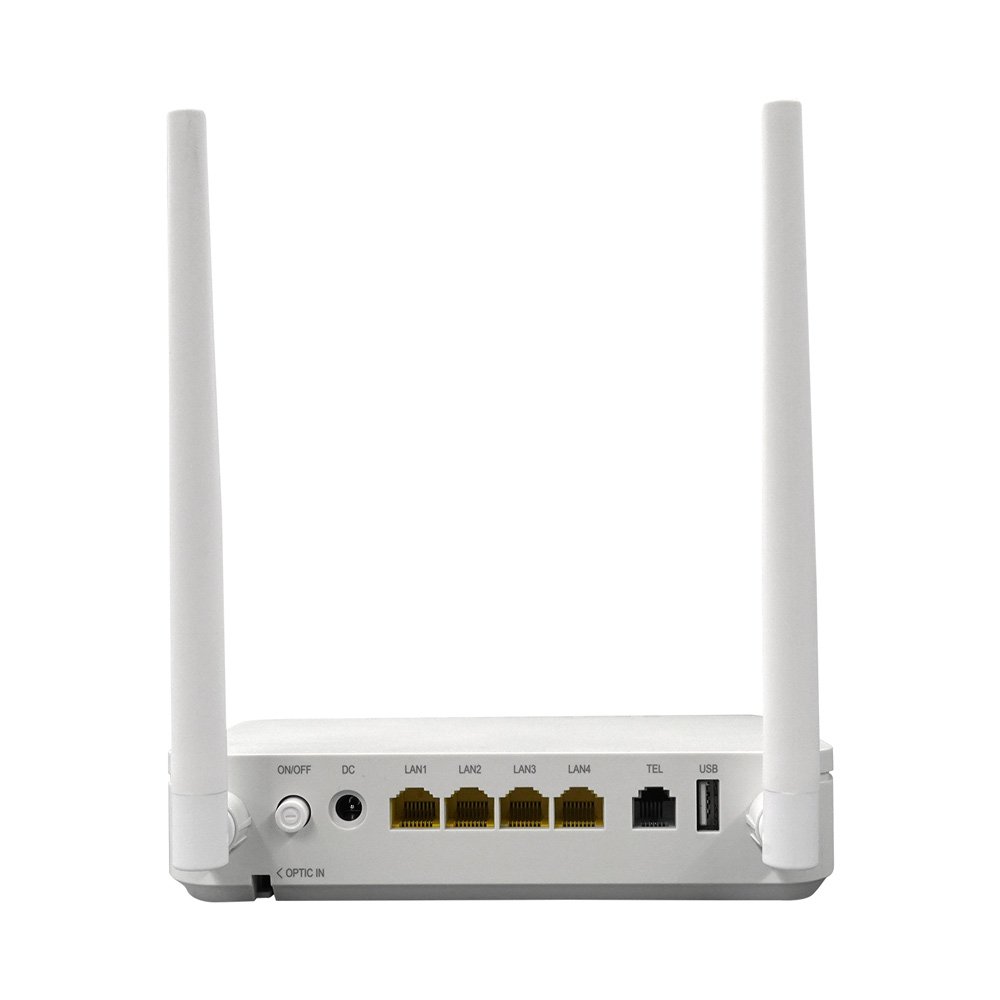

| Ports | 4*RJ45 (GE), 1*RJ11 (POTS), 1*USB, 1*Giga optical interface (APC or UPC) |
| LED Indicators | PWR, PON, Internet, TEL, 2.4G/5G, WPS, LAN1–LAN4, USB |
| Antennas | 2 x 5dBi external dual-band antennas |
| Power Supply | DC 12V/1.5A |
| Product Size | 170mm x 151mm x 195mm (L x W x H) |
| Operating Environment | Temperature: 0°C ~ 40°C, Humidity: 10% ~ 95% (non-condensing) |
WiFi5 (AC1200) Specifications
| WiFi Protocol | 2.4G: 802.11b/g/n, 5G: 802.11a/b/g/n/ac |
|---|---|
| WiFi Speed | 2.4G: Up to 300Mbps, 5G: Up to 867Mbps |
| Security | WPA/WPA2/WPA3, Firewall, DoS Protection |
| Buttons | Power, WPS, WLAN, Reset |
Management and Maintenance
The X3412 supports multiple management options, including OMCI, Web GUI (HTTP/HTTPS), Telnet, SSH, and TR069. It also allows firmware upgrades via FTP/TFTP/HTTP and configuration backup/restore for easy maintenance.
Environmental Specifications
| Operating Temperature | 0°C ~ 40°C |
|---|---|
| Operating Humidity | 10% ~ 95% (non-condensing) |
