Overview

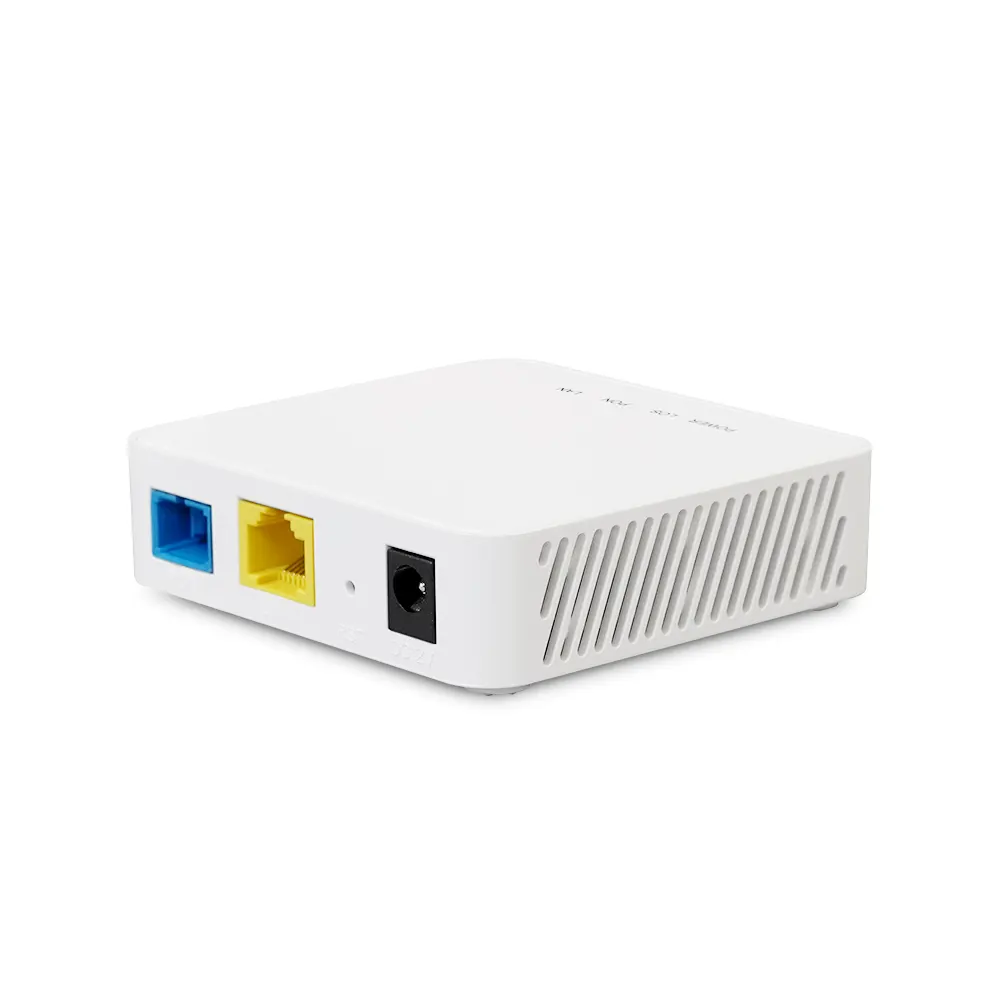

1GE XPON ONU ONT X31M Key Features
- Dual-Mode GPON/EPON: Auto-adaptive interface compliant with IEEE 802.3ah & ITU-T G.984 standards.
- High-Speed Ethernet: 1*10/100/1000M RJ45 port with auto-negotiation and MDI/MDI-X support.
- Advanced Security: Data encryption, ACL filtering, and broadcast storm resistance.
- Smart Management: Remote software upgrades, DBA (Dynamic Bandwidth Allocation), and VLAN configuration.
- Ultra-Compact Design: Space-saving dimensions perfect for home installations.
- Energy Efficient: Low power consumption (<3W) with 12V/0.5A DC input.
1GE XPON ONU ONT X31M Hardware Specifications
| Interface | 1 x 10/100/1000M RJ45, 1 x SC-UPC/SC-APC (GPON/EPON) |
|---|---|
| Dimensions | 78mm (L) x 78mm (W) x 25mm (H) |
| Transmission Distance | Up to 20KM |
| Optical Power | GPON: 0.5dBm~+5dBm | EPON: 0dBm~4dBm |
| Power Supply | 12V/0.5A DC (2.1mm/5.5mm interface) |
Software Features
- Bandwidth control and rate limitation
- PPPoE/DHCP Server/NAT/IPTV support
- MAC/Port/URL filtering
- VLAN separation and loop detection
- Power-off alarm function
Environmental Specifications
| Operating Temperature | 0°C ~ 60°C |
|---|---|
| Storage Temperature | -40°C ~ 80°C |
| Humidity | 10%~85% (operating), 5%~95% (storage) |
Management & Indicators
| Management Protocols | Web, TELNET, TR069, OAM, OMCI |
|---|---|

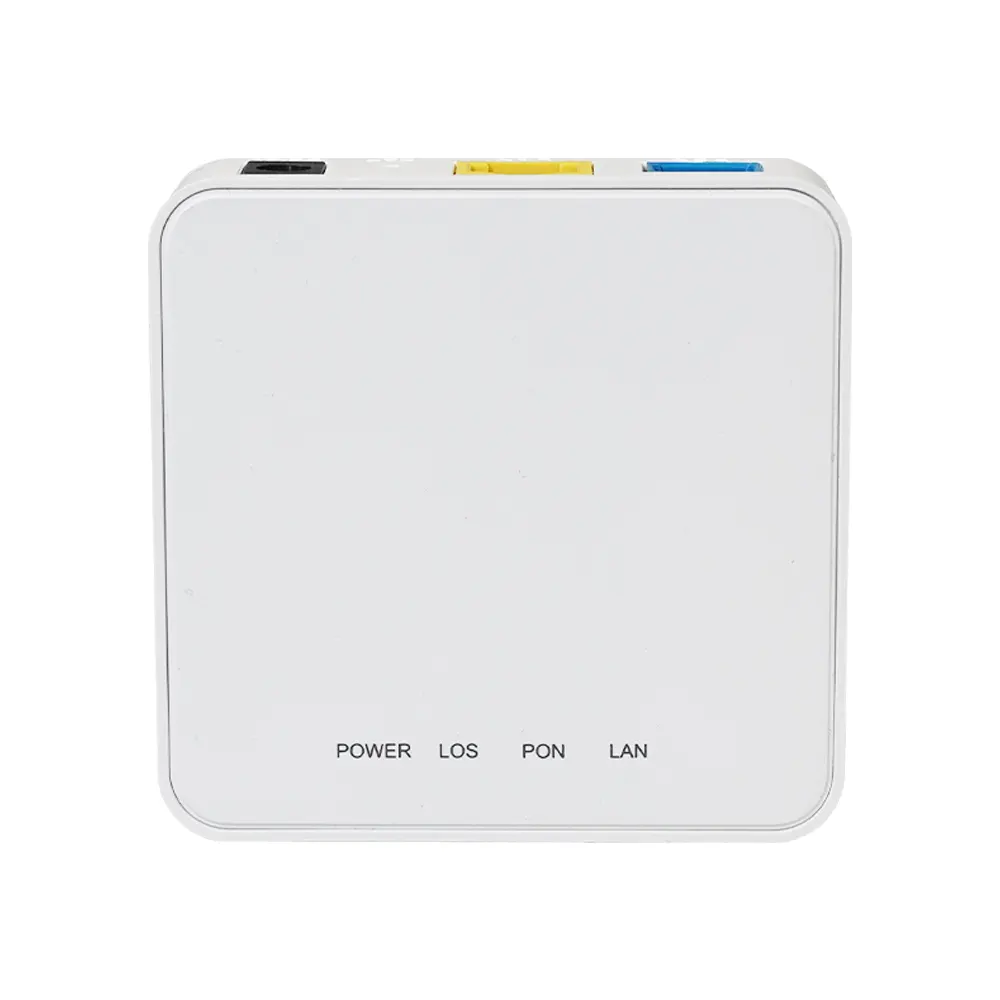

| LED Indicators |
|
