Product Overview

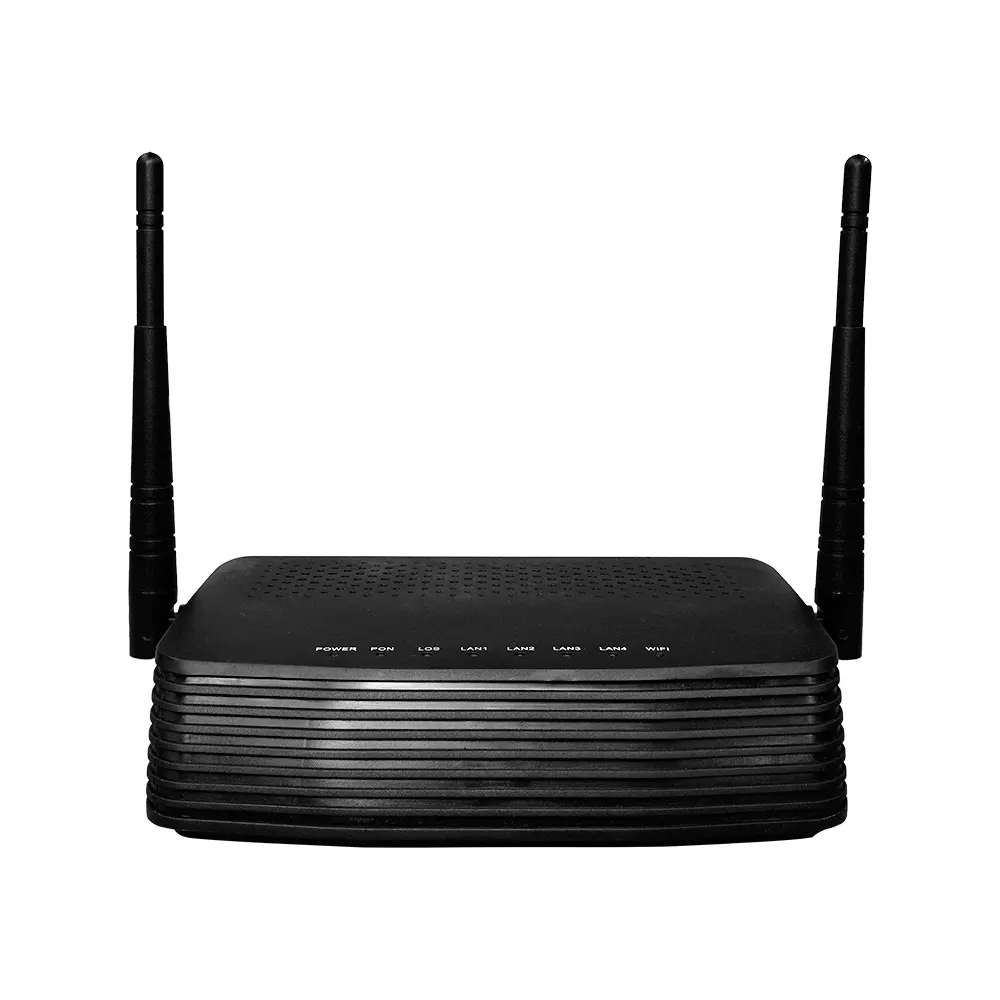

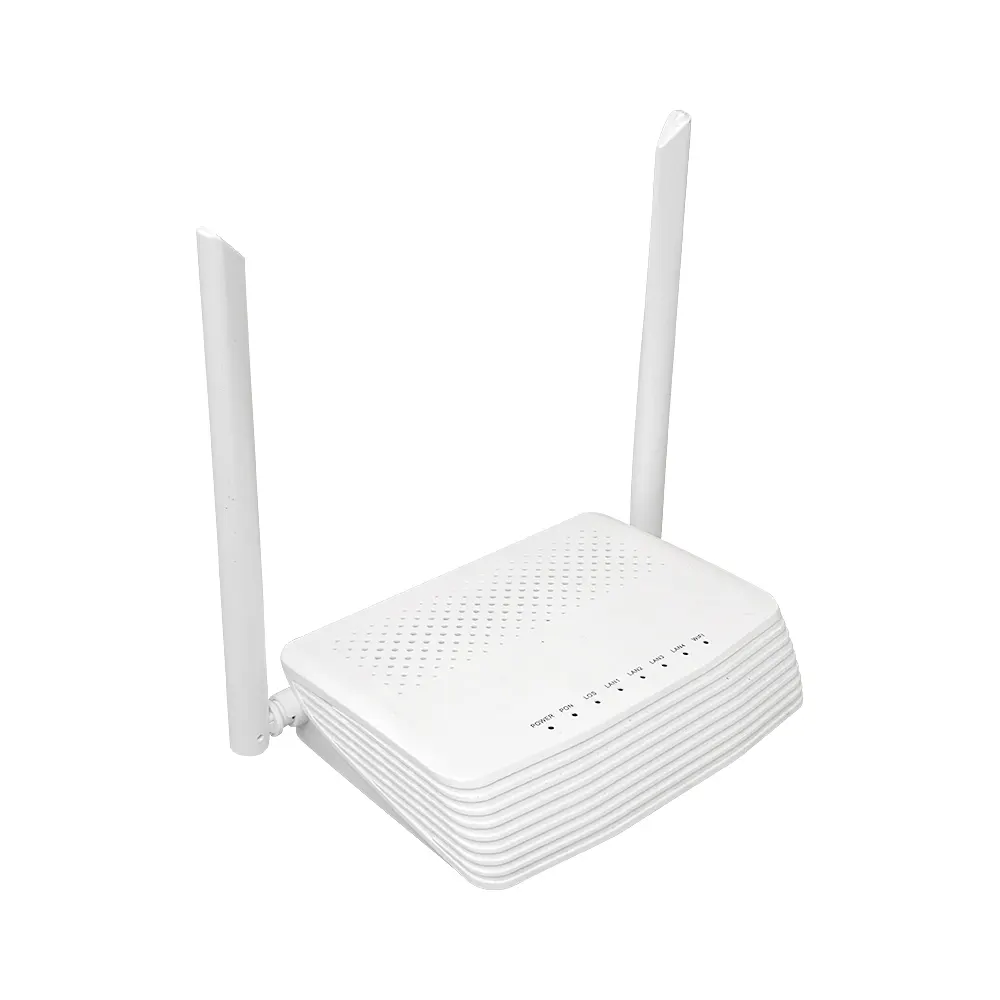

This dual-mode GPON EPON ONU WiFi router combines high-speed fiber connectivity with reliable 2.4G wireless performance. Designed as an advanced ONU fiber modem, this FTTH ONT device features:

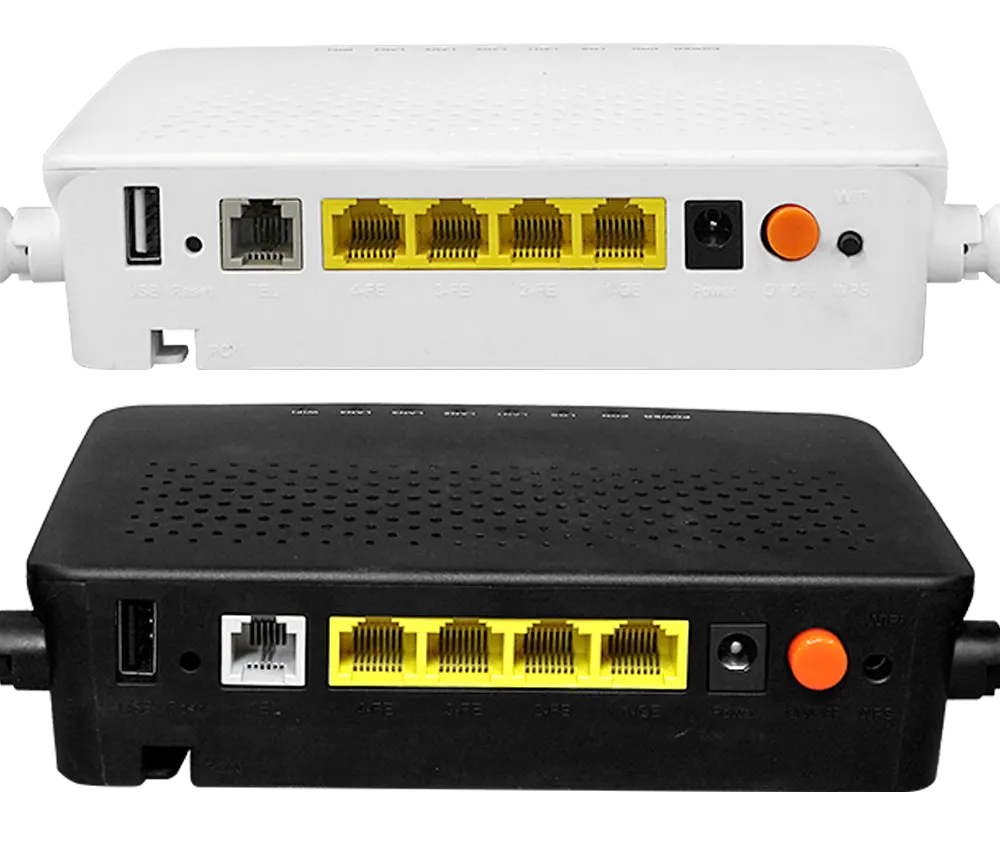

- 1×Gigabit + 3×Fast Ethernet ports
- 2.4G Single band WiFi (300Mbps)
- VoIP telephone interface (FXS)
- Dual PON mode support (GPON/EPON auto-sensing)
- Carrier-grade QoS and IPv4/IPv6 dual stack
GPON EPON ONU WiFi Router Key Features
- Dual PON Mode: Compatible with both EPON (1.25G) and GPON (2.5G) networks
- Advanced 2.4G Single band WiFi ONU: 802.11b/g/n with MIMO technology
- Complete FTTH solution: Integrated VoIP, USB 2.0, and firewall
- Wide temperature operation: Stable performance from 0℃ to +50℃
- Carrier-grade management: TR-069 and OMCI support
GPON EPON ONU WiFi Router Technical Specifications
| Interface | Parameters |
|---|---|
| PON Interface | Dual-mode GPON/EPON (SC/UPC) Downstream: 2.5Gbps (GPON)/1.25Gbps (EPON) Wavelength: TX1310nm/RX1490nm Transmission Distance: 20km |
| LAN Ports | 1×GE + 3×FE RJ45 ports Auto-negotiation 10/100/1000Mbps |
| Wireless | 2.4G Single band WiFi ONU 802.11b/g/n with 2T2R MIMO Up to 300Mbps throughput |
| Special Features | Integrated VoIP (FXS port) USB 2.0 host port GR-909 compliant line testing NAT/firewall security |
Why Choose This FTTH ONT Device?
- Future-proof dual PON compatibility
- Energy-efficient design (≤10W power consumption)
- Compact ONU fiber modem (19.5×12×3.6cm)
- Easy deployment: Plug-and-play installation
- Carrier-grade reliability: 8dBm receiving saturation
