Overview
Key Features
- Dual-Mode GPON/EPON: Supports both GPON and EPON standards for flexible deployment.
- High-Speed Connectivity: 4*1GE Ethernet ports for gigabit wired connections.
- Dual-Band WiFi6: 2.4G (574Mbps) and 5G (2402Mbps) for up to 3000Mbps wireless speeds.
- VoIP Support: Integrated VoIP port for voice communication, compliant with G.711, G.729, and G.722 standards.
- USB 3.0 Port: High-speed USB 3.0 interface for additional connectivity options.
- Advanced QoS: Supports 8 queues with strict priority for optimized traffic management.
- Compact Design: Small form factor (190mm x 135mm x 33mm) with low power consumption (≤8W).
WiFi6 Broadband ONU Router X1430 Hardware Specifications
| Flash Memory | 256MB NAND |
|---|---|
| Memory | 512MB DDR3 |
| LED Indicators | POWER, PON/LOS, NET, LAN, POTS, WiFi, WPS, USB |

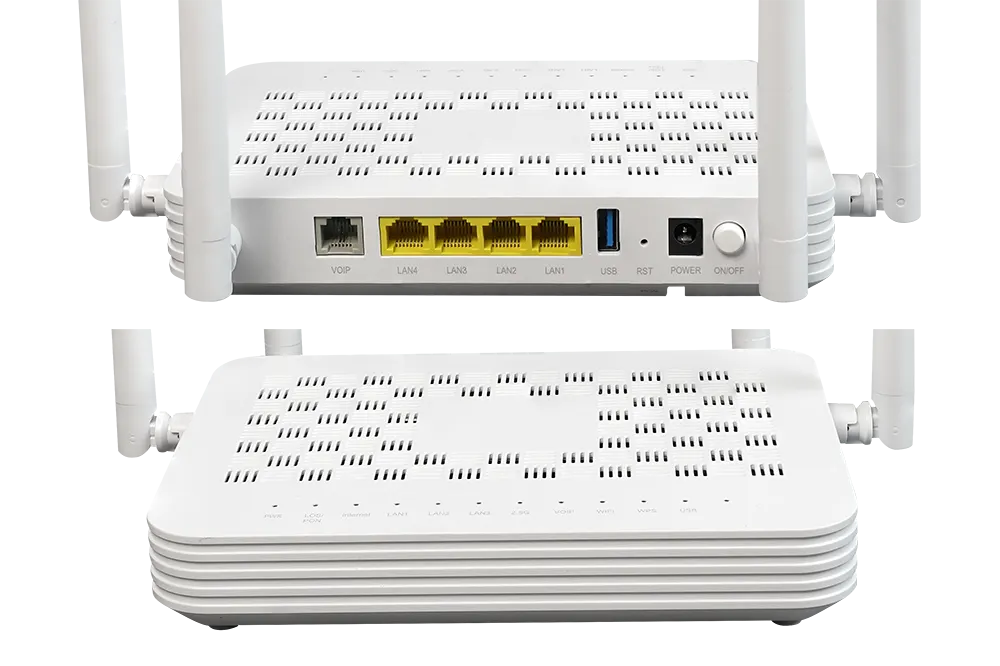

| Ports | 4*RJ45 (GE), 1*RJ11 (POTS), 1*Reset, 1*Power, 1*LED button, 1*WiFi button, 1*WPS, 1*SC/UPC (or SC/APC), 1*USB 3.0, 1*DC |
| Size | 190mm x 135mm x 33mm (L x W x H) |
| Power Consumption | ≤8W |
Interface Parameters
| GPON/EPON Port | GPON Class B+ (Upstream 1.25Gbps, Downstream 2.48Gbps), EPON PX20+ (Upstream 1.25Gbps, Downstream 1.25Gbps) |
|---|---|
| Ethernet Port | VLAN tags and tag removal, MAC address learning, 10/100/1000Mbps Autonegotiation |
| VoIP Port | Supports call waiting, call forwarding, and three-party calls. Compliant with G.711, G.729, and G.722 standards. |
WiFi6 (AX3000) Specifications
| WiFi Protocol | 2.4GHz: 802.11b/g/n/ax, 5GHz: 802.11a/n/ac/ax |
|---|---|
| Transmit Power | 2.4G: 100mW, 5G: 200mW |
| Antenna Gain | 5dBi |
| Antenna | Dual-antenna MIMO (2×2) (2.4G & 5G) |
| WLAN Penetration | One reinforced concrete wall or two ordinary brick walls |
| WLAN Access Capability | Up to 64 clients per SSID |
| Channels | 2.4GHz: Channels 1-13, 5GHz: Channels 36-161 |
| WPS | Supports WPS Push Button for easy device connection |
| Security | WPA-PSK, WPA2-PSK, WPA3, AES, AES+TKIP |
| Air Speed | 2.4G: 574Mbps, 5G: 2402Mbps |
Management and Maintenance
The X1430 supports multiple management options, including OMCI, Web UI, TR069, Telnet, and SSH with CLI commands. It also features dual-system software backup and rollback for enhanced reliability and easy maintenance.
Environmental Specifications
| Operating Temperature | 0°C ~ 45°C |
|---|---|
| Storage Temperature | -20°C ~ 70°C |
| Operating Humidity | 5% ~ 95% (non-condensing) |
| Power Supply | 12V/1.5A |
