Product Overview

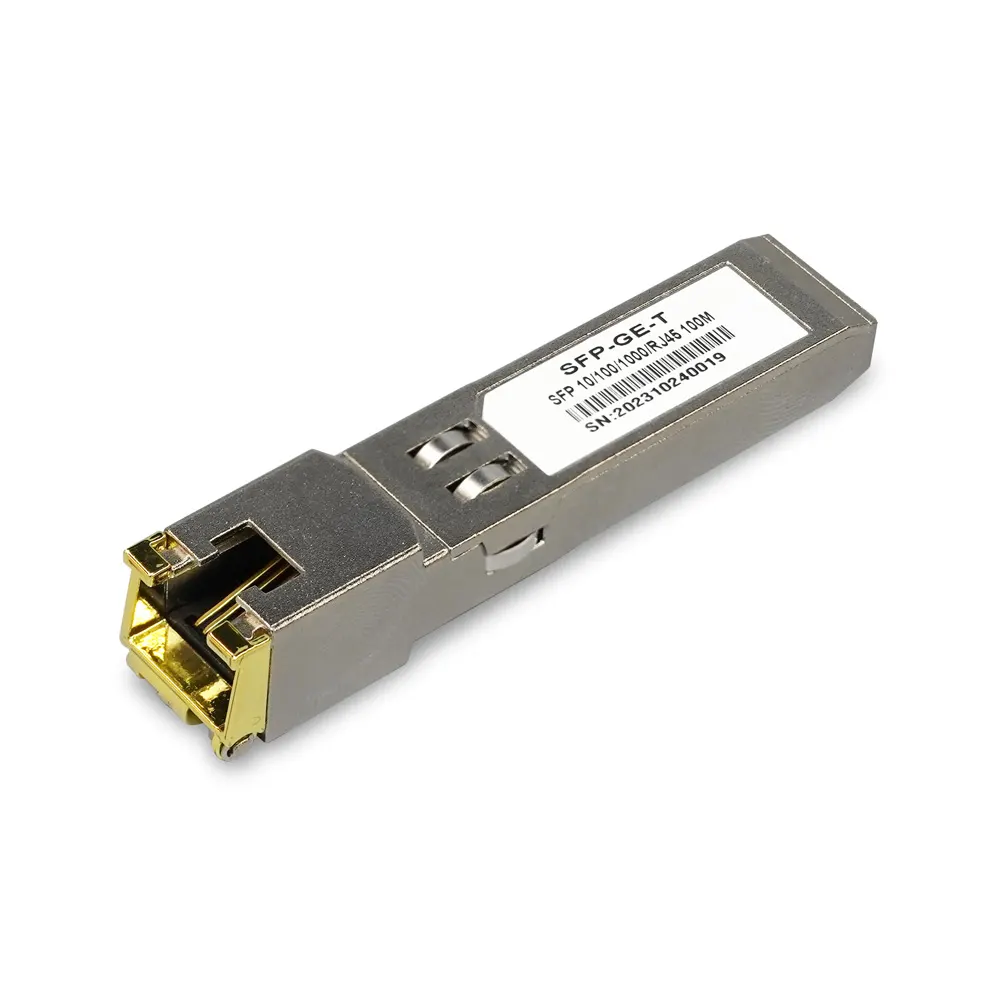

Dipper Optics’ SFP to RJ45 converter is a high-performance RJ45 SFP module designed for Gigabit Ethernet applications. This SFP module to RJ45 supports 1000BASE-T standards, enabling data transmission up to 100 meters over Cat-5 unshielded twisted-pair (UTP) cable. With a hot-pluggable SFP footprint and RoHS compliance, this RJ45 SFP transceiver is ideal for high-speed network connections.
SFP to RJ45 Converter Key Features
- Supports up to 1.25Gb/s bi-directional data links
- Hot-pluggable SFP footprint for easy installation
- Compact RJ-45 connector assembly
- Low power dissipation for energy efficiency
- Fully metallic enclosure for reduced EMI
- Compliant with IEEE 802.3 and SFP MSA standards
- RoHS6 compliant and lead-free
- Detailed product information stored in EEPROM
Technical Specifications
Operating Conditions
| Parameter | Unit | Min | Typical | Max |
|---|---|---|---|---|
| Power Supply Voltage | V | 3.13 | 3.3 | 3.47 |
| Supply Current | mA | 320 | 375 | |
| Data Rate | Gbps | 1.25 | ||
| Transmission Distance | m | 100 |
SFP to RJ45 Converter Electrical Characteristics
| Parameter | Unit | Min | Typical | Max |
|---|---|---|---|---|
| Input Voltage | V | 3.13 | 3.3 | 3.47 |
| Surge Current | mA | 30 | ||
| Power Consumption | W | 1.2 |
Applications
- Gigabit Ethernet over Cat-5 cable
- Switch/Router to Switch/Router connections
- High-speed I/O for file servers
Compliance & Certification
- Compliant with IEEE 802.3 and SFP MSA standards
- RoHS6 compliant
- FCC 47 CFR Part 15, Class B compliant
