Overview

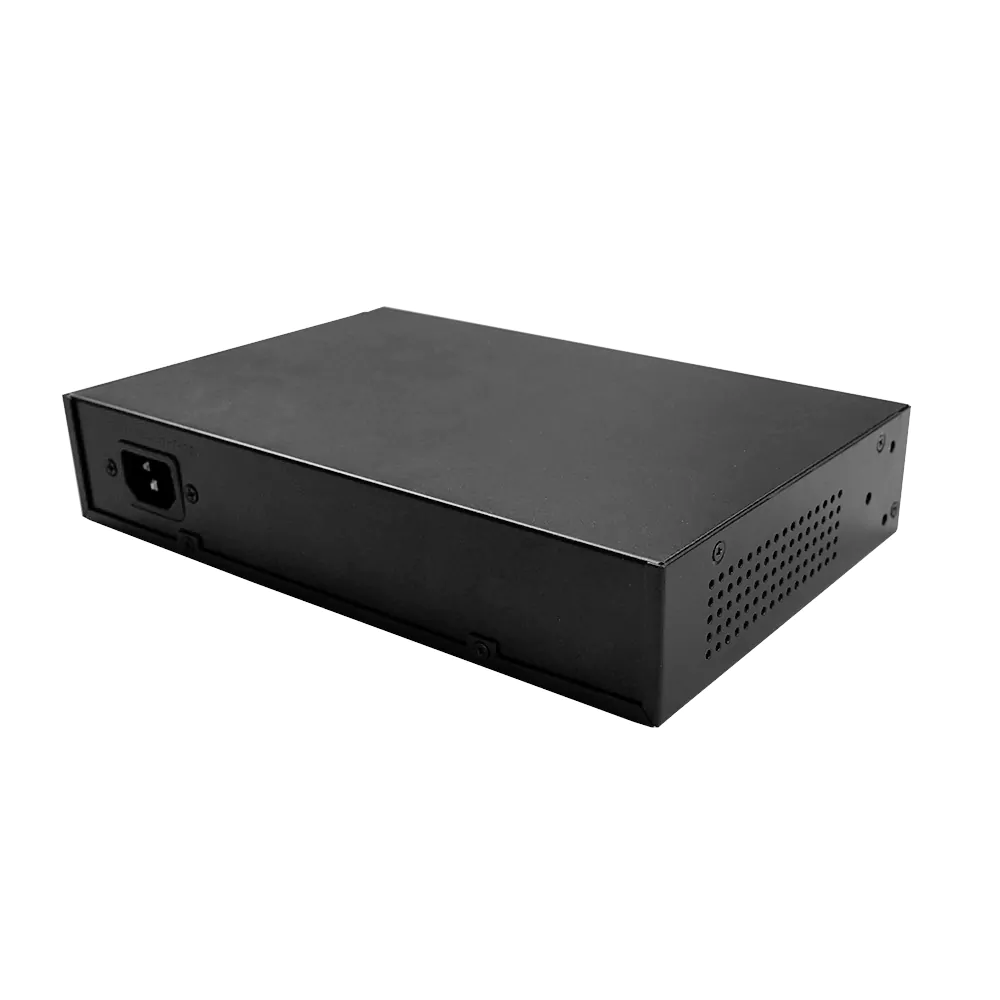

POE Switch 4 Port SZ5204-ACPB is a layer 2 Ethernet switch, which can meet the needs of costeffective 2.5G access and 10 Gigabit uplink for enterprise networks and operator customers. SZ5204-ACPB uses a high-performance low-power network processor, provides Gigabit line-speed forwarding performance, support Flexible forwarding strategy。The switch can be widely used in security network video surveillance, hotels, campuses, and network engineering of small and medium-sized enterprises。
POE Switch 4 Port Key Features
- 4 x 2.5G POE+ Ports + 1 x 10G SFP+ Uplink
- Layer 2 Managed Switch with 40Gbps Switching Capacity
- IEEE 802.3af/at PoE+ Support for Power Delivery
- Energy-Efficient Design: ≤65W Power Consumption
- Advanced Lightning Protection: 6KV Common Mode, 8KV Electrostatic
- Compact Design: 230mm x 148mm x 44mm (Space-Saving)
POE Switch 4 Port Hardware Specifications
| Ports | 4 x 10/100/1000/2500M PoE+ Ports, 1 x 10G SFP+ |
|---|---|
| Switching Capacity | 40Gbps |
| Forwarding Rate | 29.76Mbps |
| MAC Address Table | 4K Entries |
| Power Input | AC 100-240V / DC 12-75V |
| Dimensions | 230mm x 148mm x 44mm |
| Operating Temperature | -10°C to 55°C |
Software & Networking Features
Protocol Support
- IEEE 802.3af/at (PoE+), 802.3bz (2.5G Base-T), 802.3x Flow Control
- Auto MDI/MDIX for Simplified Cable Management
- Jumbo Frame Support (9KB) for High-Throughput Data
Security & Reliability
- Lightning & Surge Protection: 6KV Common Mode, 8KV Contact
- Port Storm Suppression and Loopback Detection
- Port Isolation to Prevent Unauthorized Access
Certifications & Compliance
- IEEE 802.3bz (2.5G Base-T)
- CE, RoHS Compliant
- Operating Temperature Range: -10°C to 55°C
Applications
- Security Network Video Surveillance
- Small and Medium Enterprise (SME) Networks
- Hotel and Campus Network Infrastructure
