Model: FR-POE230 Series Categories ,

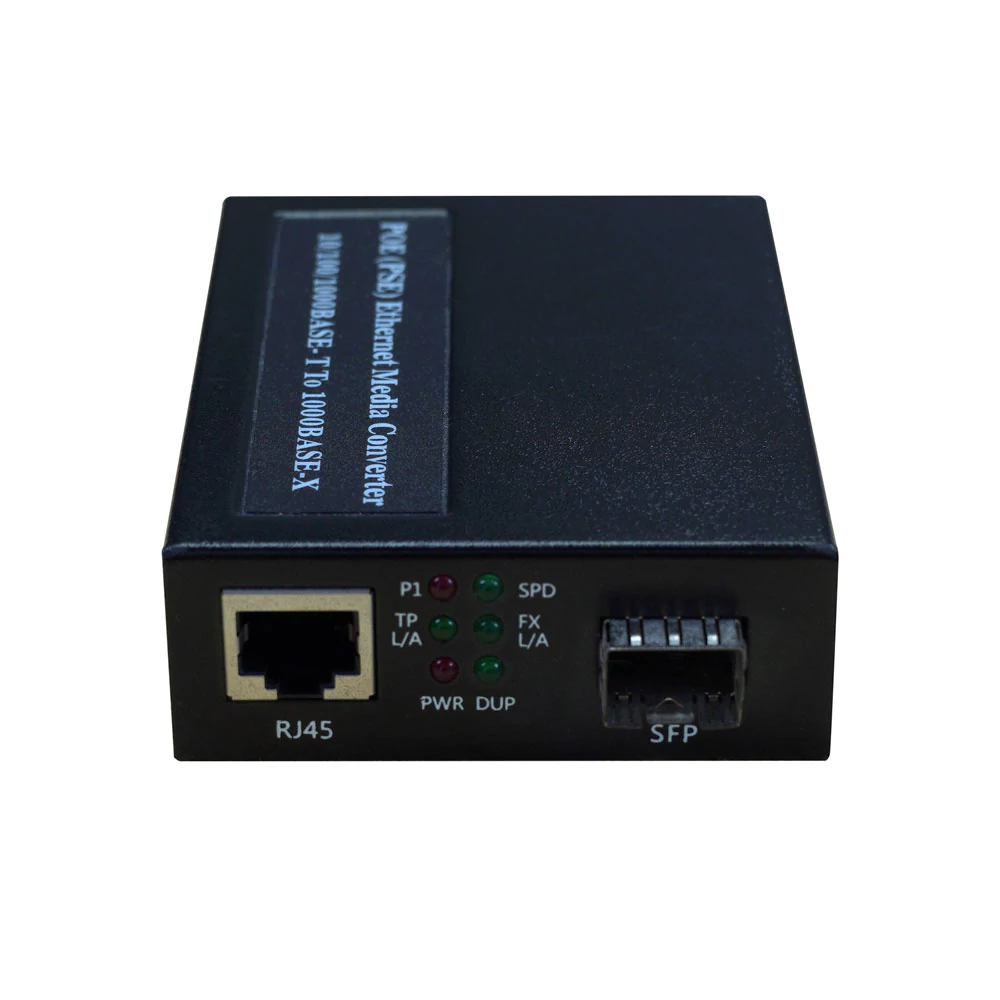

FR-POE230 Series Gigabit PoE Media Converter

Free Quote

Short Description

POE230 Series commercial grade PoE fiber media provides an option for single or dual PoE ports with 100Mbps or Gigabit Ethernet, which communicates across optical fiber via SFP port or 1×9 optical transceiver.

The PoE feature complied with IEEE802.3 af/at standard, including a PSE controller, which offers PD signature sensing and PoE negotiation features. Other intelligent features include over-current protection, LFP function, etc

poe media converter
Gigabit POE Media Converter
Gigabit POE Media Converter
Gigabit POE Media Converter
Gigabit POE Media Converter 2 RJ45
Gigabit POE Media Converter 2 RJ45
Gigabit POE Media Converter 2 RJ45
Gigabit POE Media Converter 2 RJ45

Product Overview

The FR-POE230 Series PoE Media Converter delivers robust fiber-optic connectivity combined with IEEE 802.3af/at compliant Power over Ethernet (PoE) technology. Designed for enterprise environments, this converter supports Gigabit speeds, dual RJ45 ports (FR-POE233), and advanced features like Jumbo Frames and automatic laser shutdown.
POE230 Series commercial grade PoE fiber media provides an option for single or dual PoE ports with 100Mbps or Gigabit Ethernet, which communicates across optical fiber via SFP port or 1×9 optical transceiver.
The PoE feature complied with IEEE802.3 af/at standard, including a PSE controller, which offers PD signature sensing and PoE negotiation features. Other intelligent features include over-current protection, LFP function, etc

PoE Media Converter Key Features

  • Dual PoE+ Ports (30W per port on FR-POE233)
  • Supports 100Mbps to 1Gbps Ethernet via SFP/1×9 Modules
  • Extended Range: Fiber links up to 120km
  • Intelligent DIP Switch Controls: LFP, ALS, VLAN, and FX Reset
  • Industrial-Grade Metal Housing with IP30 Rating
  • Wide Temperature Range: 0°C to 50°C Operation

poe media converter

Applications

  • Powering Wireless Access Points (WAPs) in offices
  • Remote IP Camera Installations with Fiber Backbone
  • Digital Signage and Information Kiosk Connectivity
  • Extending Network Reach in Industrial Environments

PoE Media Converter Technical Specifications

Model FR-POE231 FR-POE232 FR-POE233
Copper Ports 1x 10/100M RJ45 1x 10/100/1000M RJ45 2x 10/100/1000M RJ45
SFP Support 100Base-X 1000Base-X 1000Base-X
PoE Power 15.4W (802.3af) 30W (802.3at) 60W Total (Dual 30W Ports)
Switching Capacity 200Mbps 2Gbps 6Gbps

Standards & Compliance

  • IEEE 802.3af/at PoE+
  • IEEE 802.3z (Gigabit Fiber)
  • IP30 Metal Enclosure
  • Operating Altitude: <3000m

Package Contents

  • Media Converter Unit
  • 52VDC External Power Supply
  • User Manual
Order Models: FR-POE231 | FR-POE232 | FR-POE233
