Overview

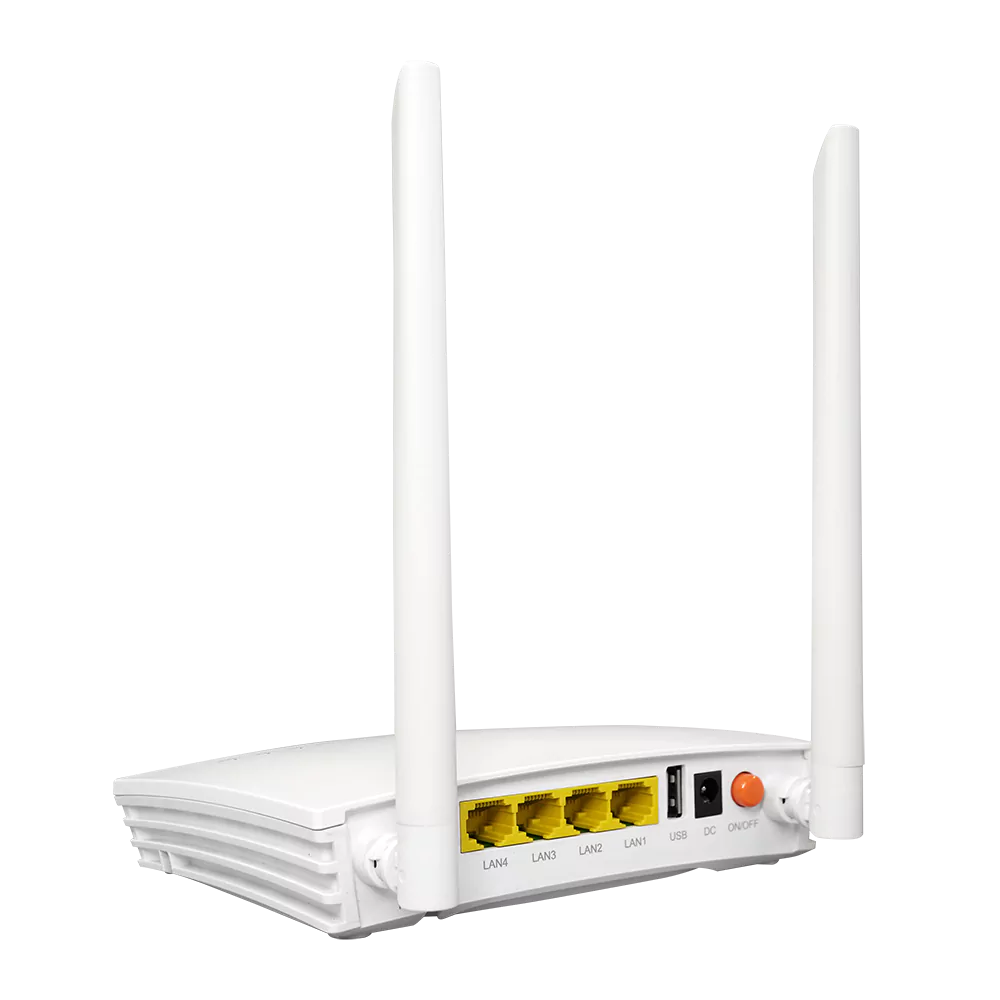

The G5403 ONU WiFi Router is a cutting-edge XPON ONT modem designed for homes and small enterprises, delivering seamless GPON/EPON connectivity with advanced features like VoIP, dual-stack IPv6/IPv4 support, and robust security. Built for high-quality internet, voice, and HD video services, this onu fiber router ensures reliable performance in diverse environments.
Key Features of G5403 ONU WiFi Router
1. Superior Connectivity
- Dual PON Modes: Supports GPON/EPON uplink for flexible fiber network integration.
- Multi-Port Design: 1×GE + 3×FE ports + 1×POTS (VoIP) + 1×USB for versatile device connections.
- WiFi4 Long-Range Coverage: 2.4GHz band with up to 300Mbps speed, 7 sub-SSIDs, and WMM/channel optimization.
2. Advanced Network Management
- Triple-Stack Support: IPv4, IPv6, and dual-stack configurations.
- Multiple Connection Modes: DHCP, PPPoE, Bridge, and VLAN binding.
- QoS & Service Prioritization: Allocate bandwidth for internet, VoIP, TR069, CloudVR, and more.
3. Enterprise-Grade Security
- IPv6/IPv4 Firewall: High/medium/low security levels with anti-attack protection.
- Multi-Layer Filtering: URL, MAC, port, and DNS filters for secure browsing.
- Access Control: Limit connected devices and enable one-key internet access.
4. VoIP & IPTV Optimization
- SIP/IMS/H.248 Support: Multi-party calls, fax compatibility (T30/T38), and call management features.
- IPTV Ready: IGMP/MLD snooping/proxy for seamless multicast streaming.
5. Easy Maintenance
- Web UI & TR069 Management: Remote configuration and diagnostics.
- Diagnostic Tools: Ping, trace route, and log management for troubleshooting.
Technical Specifications
| Category | Details |
|---|---|
| Network Interface | GPON/EPON |
| User Interface | 1×GE + 3×FE + 1×POTS + 1×USB + WiFi4 (2.4GHz) |
| Dimensions | 155mm × 140mm × 35mm (Indoor desk/wall-mounted) |
| Power Consumption | 4.8W (Typical) / 10.2W (Max with USB load) |
| Power Supply | 12V/1A adapter (Input: 180-240V AC) |
| Operating Temp | -5°C to +45°C |
| Security | IP20 rating, IPv6/IPv4 firewall, MAC filtering |
Ideal Applications
- Home Fiber Networks: Stream HD video, gaming, and VoIP calls with low latency.
- Small Business Solutions: Secure, high-speed connectivity for offices and remote teams.
- Triple-Play Services: Integrate internet, voice, and IPTV on a single onu fiber router.
Why Choose the G5403 ONU WiFi Router?
- Future-Proof Design: Supports IPv6 and dual-stack configurations.
- Scalable WiFi: Connect up to 7 sub-SSIDs with adjustable transmit power.
- Plug-and-Play Setup: Easy installation via web UI or mobile app.
