Overview

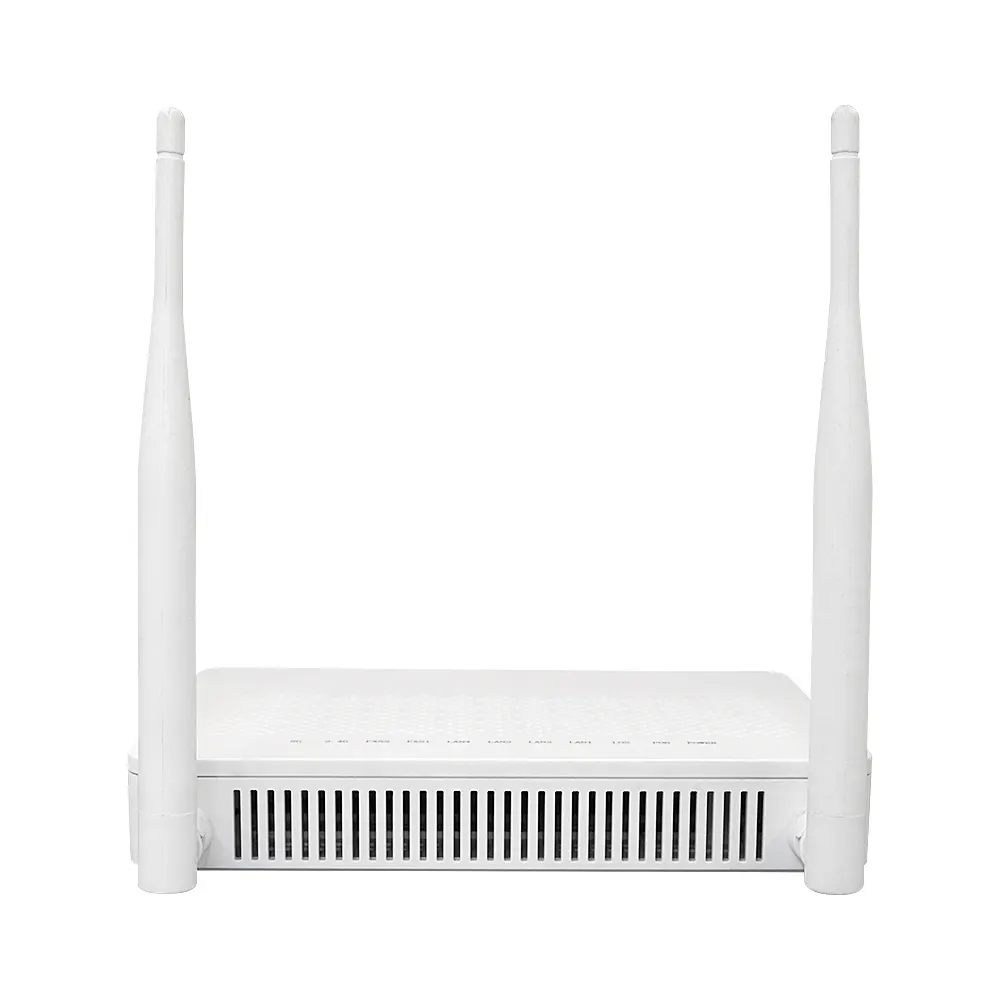

This is an ONU modem dual band WiFi router model X3412B, with the main features of 4 Gigabit Ethernet interfaces, supporting EPON and GPON networks, 1.25G uplink speed and 2.5G downlink speed, adopting 2.4G 5.8G dual band WiFi solution, supporting IEEE802.11ac protocol, maximum wireless transmission speed of 1200Mbps, two POTS interfaces supporting VoIP services, and one USB2.0 interface.
Key Features
- Dual Band WiFi5 AC1200 with 2.4G (300Mbps) + 5.8G (866Mbps) ultra-fast speeds
- Advanced XPON Router supporting EPON/GPON networks (2.5G downlink)
- 4 Gigabit Ethernet ports + 2 VoIP POTS interfaces + USB 2.0
- Seamless compatibility with major OLTs for FTTX optic network terminal deployment
- EasyMesh WiFi, WPS, and multi-SSID support for smart home integration
Dual Band WiFi ONU Modem X3412B Technical Specifications
| Wireless Standard | IEEE 802.11 b/g/n/ac (WiFi5 AC1200 dualband) |
| PON Interface | GPON (2.488G Down/1.244G Up) | EPON (1.244G Symmetric) |
| Wired Ports | 4×GE + 2×FXS (VoIP) + 1×USB 2.0 |
| WiFi Speed | Dualband 1200Mbps (300Mbps@2.4G + 866Mbps@5.8G) |
| Compliance | IEEE 802.3ah(EPON) / ITU-T G.984.x(GPON) / IPv4/IPv6 |
Product Overview
The X3412B Dual Band WiFi ONU Modem delivers enterprise-grade performance for FTTX networks. As a versatile FTTX optic network terminal device, it combines WiFi5 AC1200 speeds with carrier-class GPON/EPON support, making it ideal for:
- Fiber-to-the-Home (FTTH) triple-play services
- High-density WiFi6-ready environments
- VoIP-integrated smart office solutions
