Product Overview

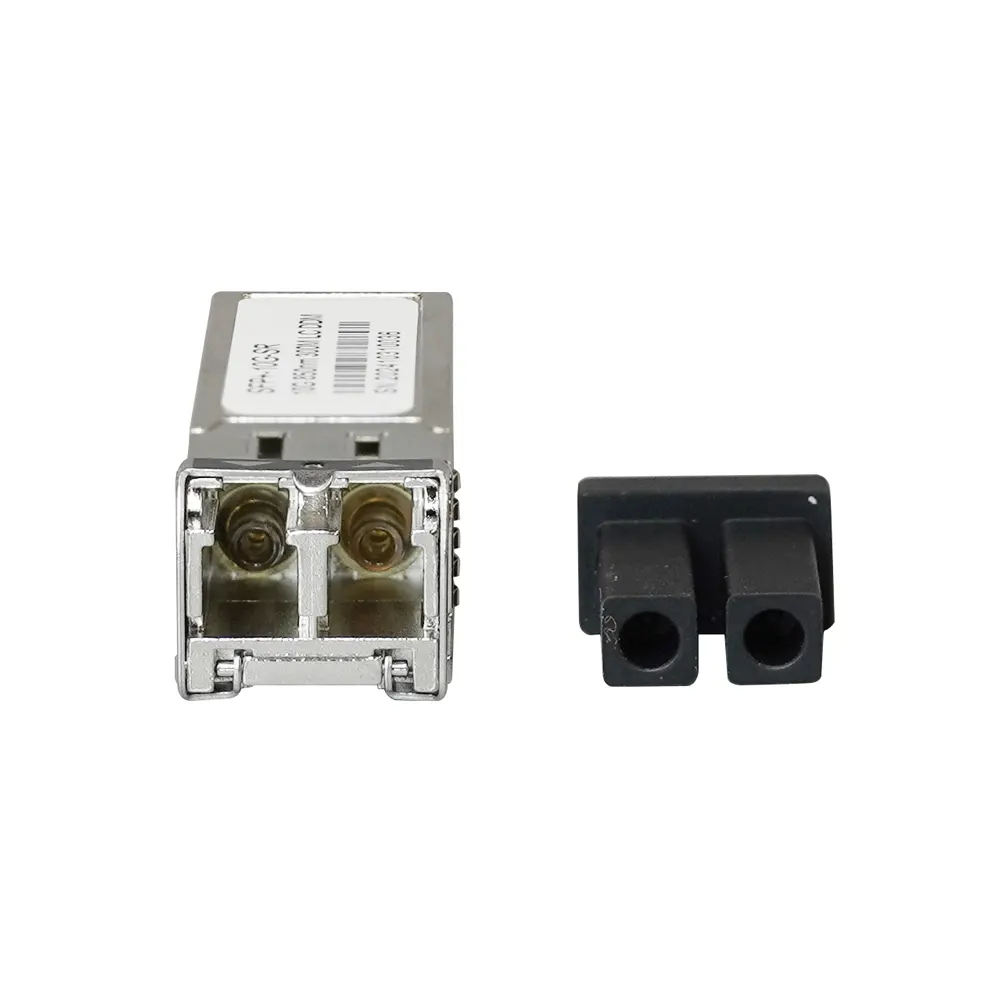

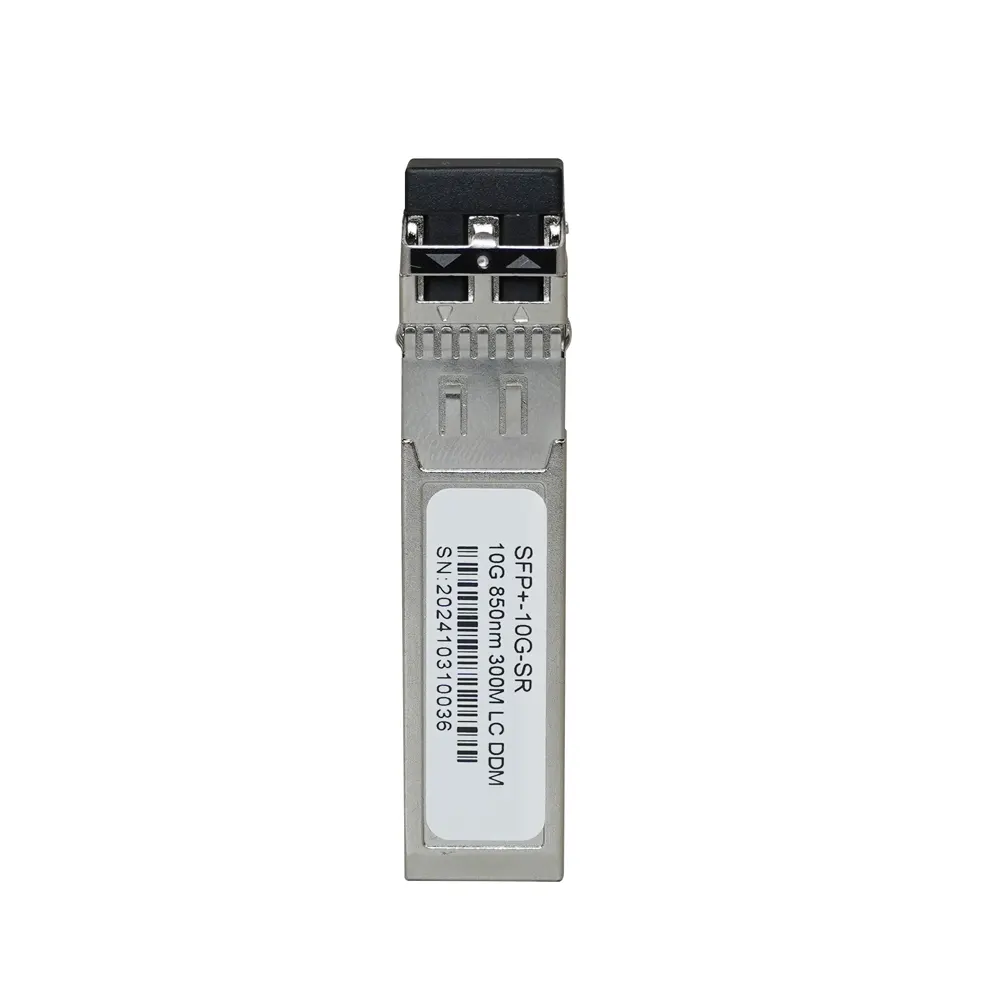

This multimode SFP module is a high-performance SFP+ 10GE transceiver designed for 10G Ethernet and fiber optic applications. With duplex LC connectors and OM3 multimode fiber support, this multimode SFP transceiver provides reliable data transmission up to 300m. Featuring a VCSEL transmitter, PIN receiver, and low power dissipation, this module is ideal for high-speed network connections.
multimode sfp module Key Features
- Supports 10G Ethernet and 10G Fibre Channel applications
- Duplex LC connectors for multimode fiber
- Hot-pluggable SFP+ footprint for easy installation
- VCSEL transmitter and PIN receiver for high performance
- Low power dissipation (<0.8W) for energy efficiency
- Single 3.3V power supply
- RoHS compliant and lead-free
- Compliant with IEEE 802.3ae and SFP+ MSA standards
- Excellent ESD protection for durability
Technical Specifications
multimode sfp module Operating Conditions
| Parameter | Unit | Min | Typical | Max |
|---|---|---|---|---|
| Storage Temperature | ℃ | -40 | 85 | |
| Operating Case Temperature (Commercial) | ℃ | 0 | 70 | |
| Operating Case Temperature (Industrial) | ℃ | -40 | 85 | |
| Power Supply Voltage | V | 3.13 | 3.3 | 3.47 |
| Supply Current | mA | 360 | ||
| Transmission Distance | m | 300 |
Optical Characteristics
| Parameter | Unit | Min | Typical | Max |
|---|---|---|---|---|
| Transmitter Wavelength | nm | 840 | 850 | 860 |
| Receiver Sensitivity | dBm | -11.1 | ||
| Mean Launched Power | dBm | -7.3 | -1 | |
| Optical Return Loss Tolerance | dB | -12 |
Applications
- 10GBASE-SR/SW Ethernet
- 10G Fibre Channel
- High-speed data center connections
- Telecommunications and network infrastructure
Compliance & Certification
- Compliant with IEEE 802.3ae
- Compliant with SFP+ MSA (SFF-8431 Rev4.1)
- Compliant with SFF-8472 Rev11.0
- RoHS compliant and lead-free
- ESD protection: MIL-STD-883E Method 3015.7, IEC 61000-4-2
- Laser safety: FDA 21CFR 1040.10, EN60825-1,2
Ordering Information
| Part Number | Description |
|---|---|
| SFP+ 10G 850nm 300M | 10G SFP+, 850nm, 300m, LC connector, Commercial temperature |
| SFP+ 10G 850nm 300M | 10G SFP+, 850nm, 300m, LC connector, Industrial temperature |
