Product Overview

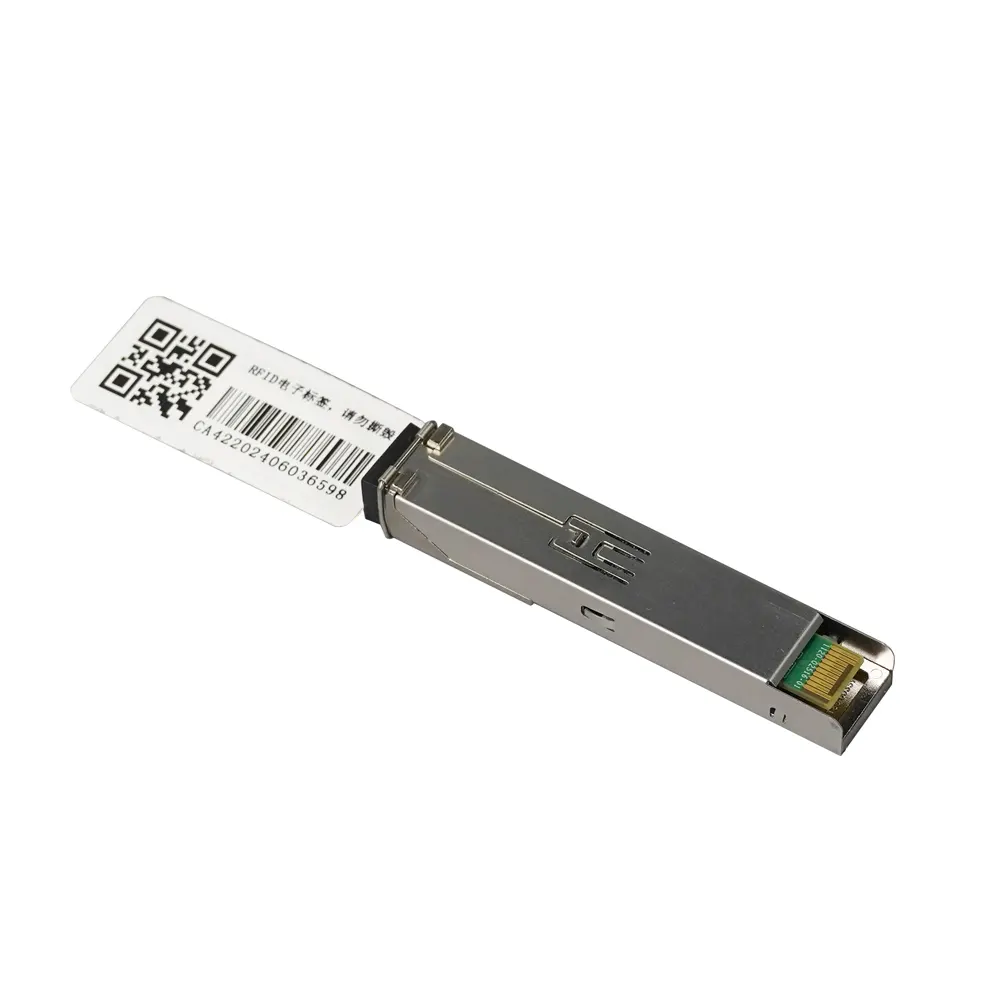

The SFP Fiber Module Huawei SmartAX MA5671A is a compact SFP ONU (Optical Network Unit) fiber module designed for GPON (Gigabit Passive Optical Network) deployments. It enables high-speed internet (HSI) and VoIP services by connecting downstream to switches/routers via GE ports and upstream to OLTs through GPON fiber interfaces. Ideal for enterprise, residential, and industrial environments, this SFP module combines flexibility, reliability, and intelligent management.
Huawei SFP Fiber Module Key Features
- GPON Compliance: Supports ITU-T G.984 standard with 2.488 Gbit/s downstream and 1.244 Gbit/s upstream speeds.
- Plug-and-Play Deployment: Enables offline configuration and one-click installation for rapid service activation.
- High Bandwidth & QoS: Delivers concurrent data, HD video, and VoIP services with differentiated QoS guarantees.
- Robust Environmental Tolerance: Operates in extreme temperatures (-40°C to +85°C) and altitudes up to 4,000 meters.
- Smart Diagnostics: Integrated DDM (Digital Diagnostic Monitoring) for real-time tracking of temperature, voltage, and optical power.
MA5671A SFP Fiber Module Technical Specifications
| Dimensions | 12.5mm (W) × 72mm (D) × 14.1mm (H) |
|---|---|
| Weight | 18g (without fiber caps) / 19g (with fiber caps) |
| Power Consumption | ≤2.0W |
| Optical Interface | SC/APC connector, 20km max transmission distance |
| Electrical Interface | SGMII, 1 GE/2.5 GE bandwidth |
| Compliance | ROHS5, REACH, FCC, IEC60950-1, GPON standards |
Applications
- Fiber-to-the-Home (FTTH) broadband access
- Enterprise network backhaul and VoIP integration
- Industrial IoT and outdoor communication systems
Management & Maintenance
- Remote batch upgrades and version rollback
- Automatic fault detection and diagnostic tools
- NMS (Network Management System) integration
Compliance & Safety
Meets international standards for environmental safety (ROHS5/REACH), electromagnetic compatibility (EN55022/FCC), and operational safety (IEC60950-1).
