Overview

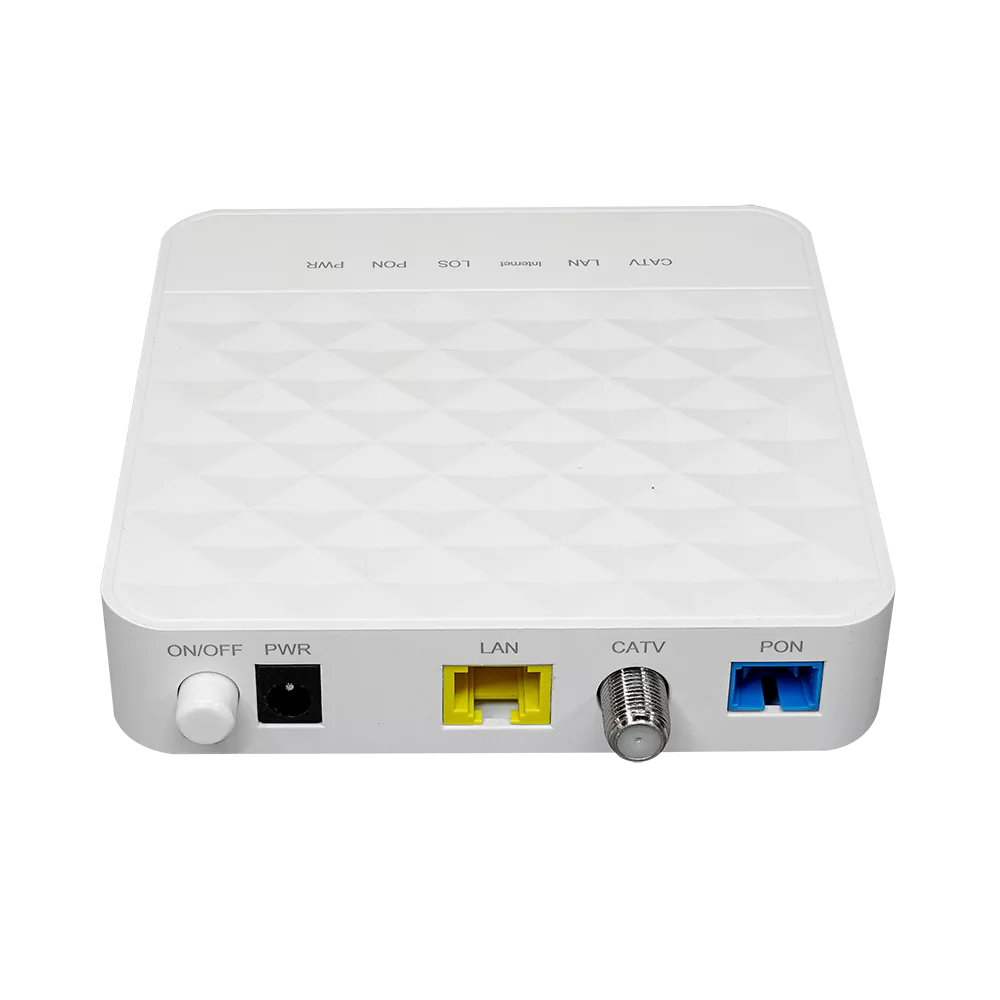

The X11C is a high-performance FTTH CATV Modem Router designed for residential and SOHO users. Combining GPON/EPON support, 1 Gigabit Ethernet port, and CATV RF output, this ONU FTTH Equipment provides a complete solution for fiber-to-the-home (FTTH) and fiber-to-the-building (FTTB) deployments. With advanced routing, video, and voice capabilities, it ensures reliable connectivity for internet, TV, and VoIP services.
FTTH CATV Modem Router X11C Key Features
- ✅ GPON/EPON Dual-Mode: Compliant with ITU-T G.984 and IEEE 802.3ah
- ✅ 1 Gigabit Ethernet Port: High-speed wired connectivity
- ✅ CATV RF Output: Converts optical signals to RF for TV services
- ✅ Advanced Routing: NAT, VLAN, QoS, and firewall support
Technical Specifications
| Category | Specifications |
|---|---|
| PON Interface | GPON/EPON (SC/APC) |
| Ethernet Port | 1×10/100/1000Mbps RJ45 |
| CATV RF Output | F-type connector |
| Transmission Rate | GPON: 2.488Gbps Down / 1.244Gbps Up |
| Power Supply | 12V/1A DC |
| Dimensions | Compact design for easy installation |
| Operating Temperature | -10°C ~ 45°C |
Advanced Features
Network & Routing
- Supports PPPoE, IPoE, Static IP, and Bridge modes
- Layer 2 VLAN tagging and QoS prioritization
- NAT/NAPT, DMZ, and firewall for secure connectivity
Video & CATV
- IGMP Snooping for optimized multicast video streaming
- CATV RF output with high signal quality (CNR ≥ 45dB)
- Supports PAL-D and NTSC standards
Management & Maintenance
- OMCI and TR-069 remote management
- Dual software partitions for safe upgrades
- Performance monitoring and automatic rollback
Typical Applications
🏠 Residential FTTH: High-speed internet and CATV for homes
🏢 SOHO Networks: Reliable connectivity for small offices
📺 Triple-Play Services: Internet, TV, and VoIP in one device
Why Choose X11C?
- 🌐 All-in-One Solution: Combines fiber, Ethernet, and CATV
- 🔌 Carrier-Grade Reliability: Designed for ISP deployments
- 🛠️ Easy Maintenance: Remote diagnostics and upgrades
As a versatile Optical Network Unit, the X11C excels in delivering seamless FTTH solutions. Its integration with ONU FTTH Equipment standards ensures compatibility with ISP requirements, making it a top choice for scalable and reliable fiber networks.
Contact us today for X11C pricing and tailored FTTH solutions!
