Overview

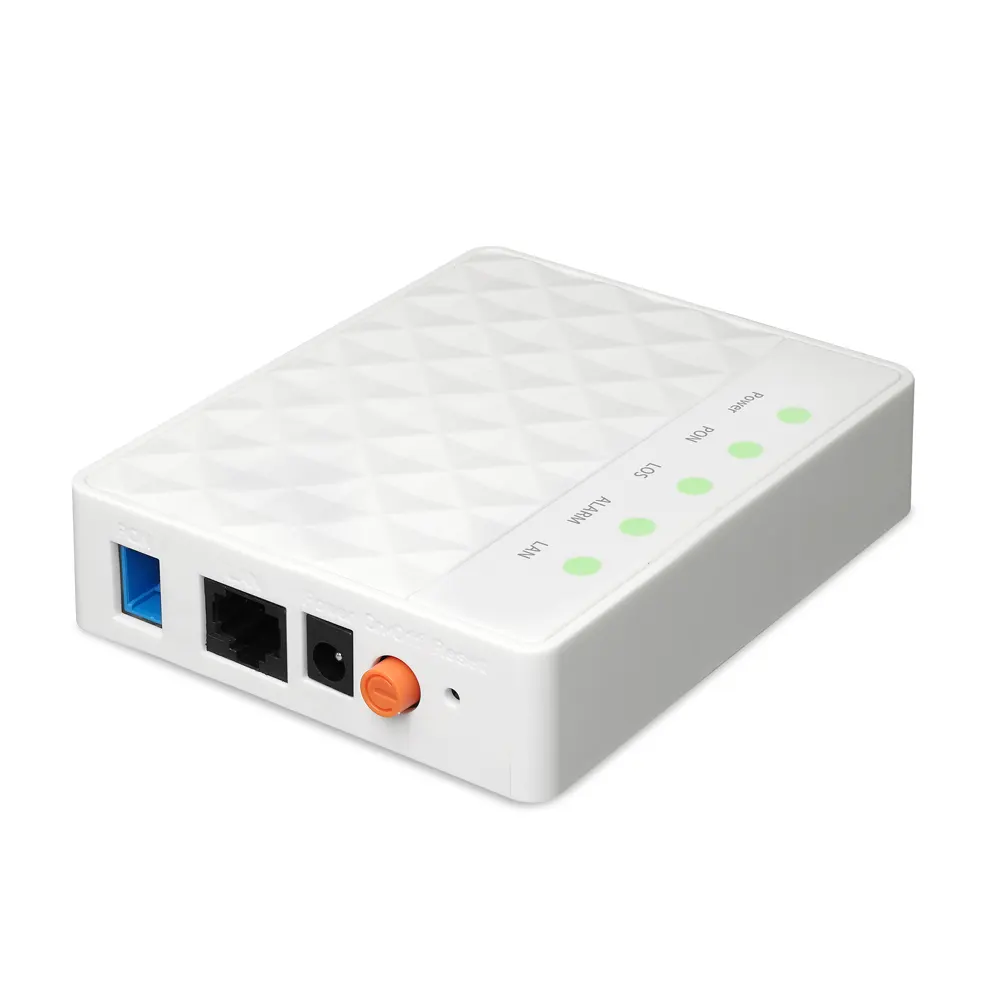

The XPON 1GE ONU F601S is a micro mini ONU designed by Hosecom for FTTH (Fiber-to-the-Home) applications. Supporting both GPON and EPON modes, this entry-level ONT HGU integrates Layer 2 switching and Layer 3 routing in a palm-sized chassis (105x85x25mm). With a 1GE RJ45 port and 2.5Gbps downstream capability, it delivers reliable connectivity for residential and small business networks at an affordable price.
F601S XPON 1GE ONU Key Features
- ✅ Dual-Mode XPON: Compatible with GPON (ITU-T G.984) and EPON (IEEE 802.3ah) standards
- ✅ Ultra-Compact Design: 25mm slim profile for space-saving installations
- ✅ Advanced Routing: NAT, PPPoE, DHCP Server, and IPv4/IPv6 dual-stack support
- ✅ Carrier-Grade Security: ACL, MAC filtering, and power-off alarm for stable operation
Technical Specifications
| Hardware | |
|---|---|
| PON Interface | SC/UPC or SC/APC, 20KM coverage |
| Ethernet | 1×10/100/1000M auto-negotiation RJ45 |
| Dimensions | 105mm (L) × 85mm (W) × 25mm (H) |
| Power Consumption | <3W (12V/0.5A DC) |
| Optical Performance | |
| Downstream Rate | 2.5Gbps |
| Upstream Rate | 1.25Gbps |
| Sensitivity | -28dBm ~ -7dBm |
Advanced Capabilities
Network Management
- Dynamic Bandwidth Allocation (DBA) for traffic optimization
- VLAN tagging, port isolation, and loop detection
- Broadcast storm suppression and URL/MAC filtering
QoS & Security
- Port-based rate limiting and bandwidth control
- PPPoE authentication with IPTV support
- Dual software backup for system stability
Remote Control
- OMCI, TR-069, and TELNET management
- Auto-discovery and firmware upgrade
Typical Applications
🏠 Residential FTTH: High-speed internet & IPTV for homes
🏪 SMB Networks: Affordable connectivity for small offices
📶 Smart IoT Gateways: Low-power hub for smart devices
Why Choose F601S?
- 🌐 Plug-and-Play: Auto MDI/MDI-X for effortless cabling
- 🔌 Energy Efficient: Sub-3W operation reduces OPEX
- 🛠️ Future-Proof: Supports software-defined upgrades
As a versatile XPON 1GE ONU, the F601S micro ONT modem bridges cost-effectiveness with carrier-grade performance. Its mini ONU design and GPON/EPON adaptability make it ideal for ISPs seeking scalable FTTH solutions. Engineered for -40°C to 80°C environments, it ensures reliability in diverse climates.
Contact us today for F601S bulk pricing and customization options!
