Product Overview
The ET0412 EPON OLT 4 port is a medium-capacity, highly integrated network switch designed for operators, ISPs, enterprises, and campus applications. Compliant with IEEE 802.3ah standards, it offers robust compatibility, high reliability, and advanced software features. Ideal for FTTH access, VPNs, government networks, and campus deployments.

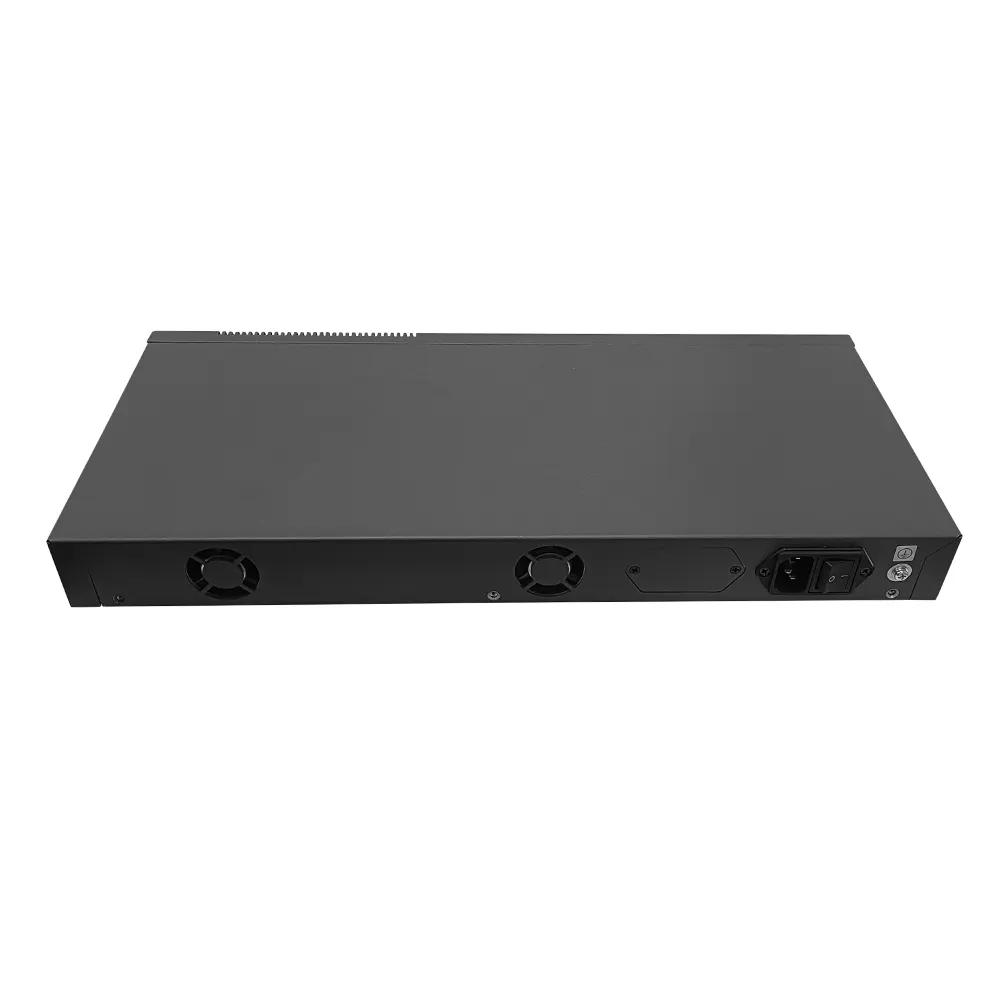

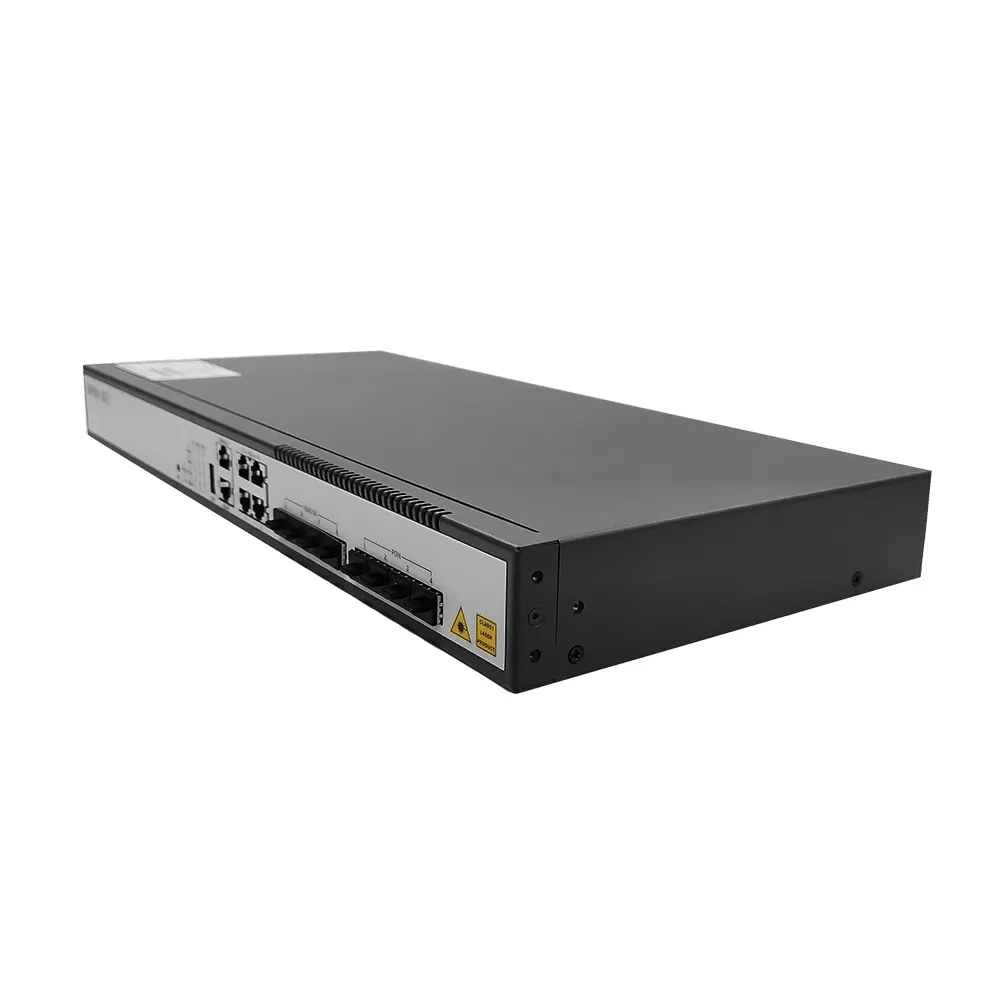

- Compact 1U design for space efficiency
- Supports mixed ONU networking to reduce operational costs
- Dual power redundancy (optional)
EPON OLT 4 Port ET0412 Key Features
- 4 EPON ports + 4x10GE SFP+ uplinks
- 96Gbps switching capacity & 71.424Mpps forwarding rate
- Advanced Layer 3 routing (RIP, OSPF, BGP, ISIS)
- 4K VLAN support with flexible QinQ
- Comprehensive security (802.1X, DDoS protection, ARP anti-spoofing)
- Dual power backup & hot-swappable modules
EPON OLT 4 Port ET0412 Technical Specifications
| Attribute | ET0412 |
|---|---|
| Port Configuration | 4x EPON, 4x10GE SFP+, 4xGE RJ45 |
| PON Standard | IEEE 802.3ah, 20km range, 1:64 split ratio |
| Memory | 512MB RAM / 32MB storage |
| Power | AC 100-240V or DC 36-75V, ≤38W |
| Dimensions | 440mm x 44mm x 200mm |
| Operating Temperature | -10°C to 55°C |
Applications
- Fiber-to-the-Home (FTTH) access networks
- Enterprise VPN and campus backbone
- Government and smart city infrastructure
- High-density IP video surveillance systems
