Model: X7412A Categories ,

X7412A Dual Band ONT Router – 4GE WiFi5 AC1200 FTTH Equipment

Free Quote

Short Description

This is a highly configurable XPon ONU Modem Router with 2.4Ghz 5.8Ghz dual-band Wifi solution, supports AC1200, and the maximum wireless transmission rate is up to 1200Mbps.This Wifi ONT has 4 Gigabit LAN ports, 2 USB ports, and 1 POTS port. This product is fully configured and cost-effective, welcome to contact us for more information.

dual band ont router
dual band ont router
dual band ont router

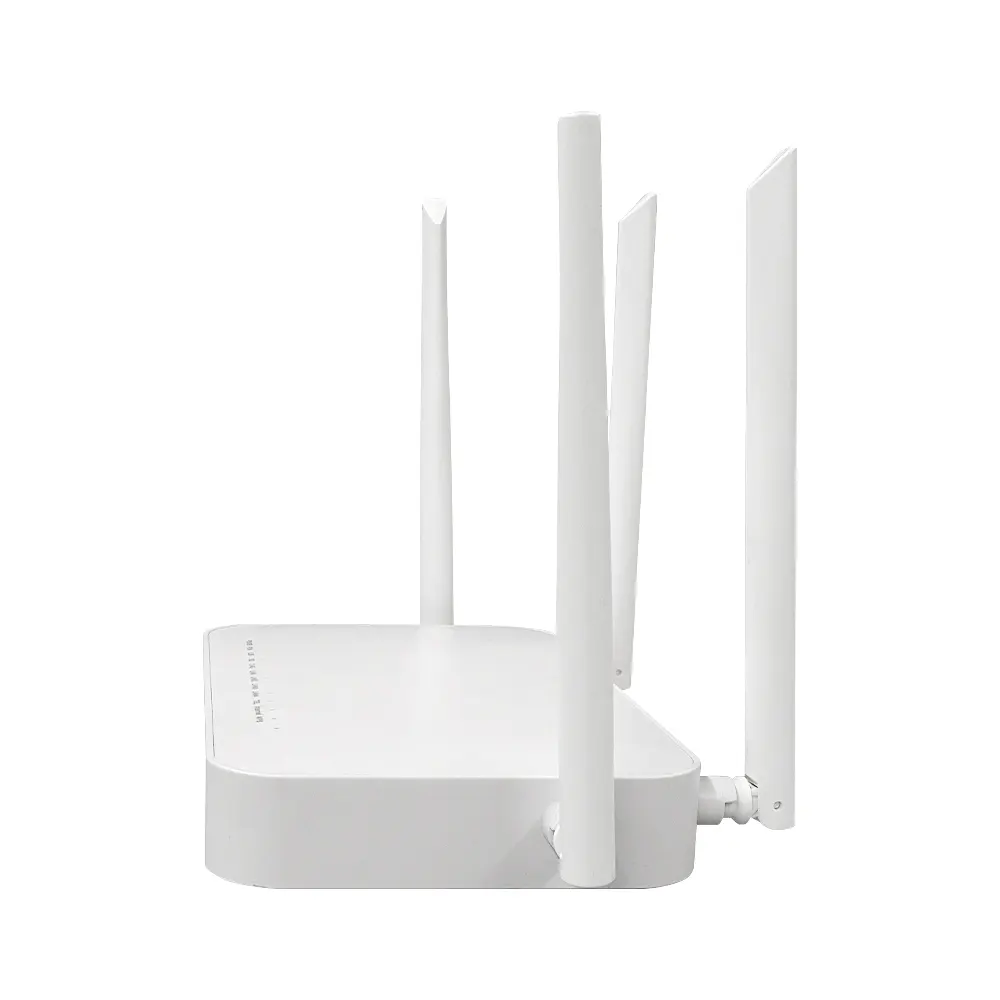

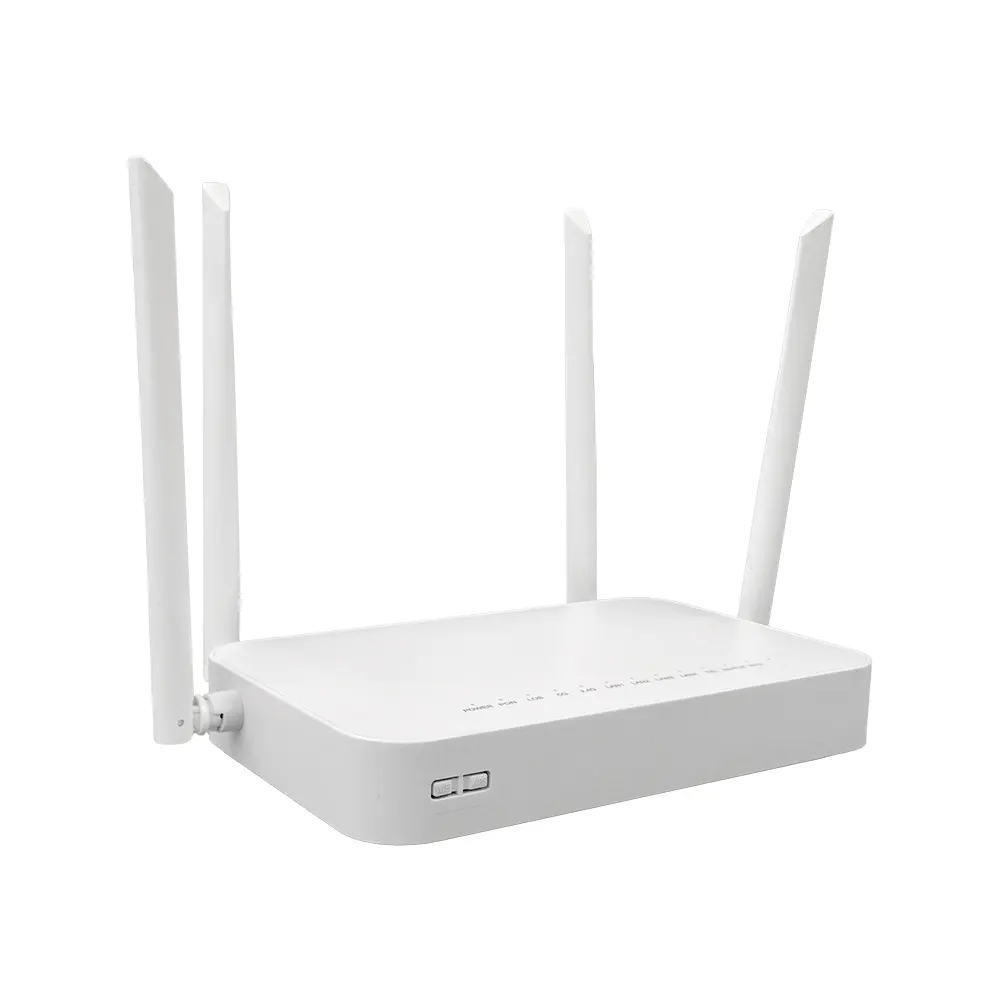

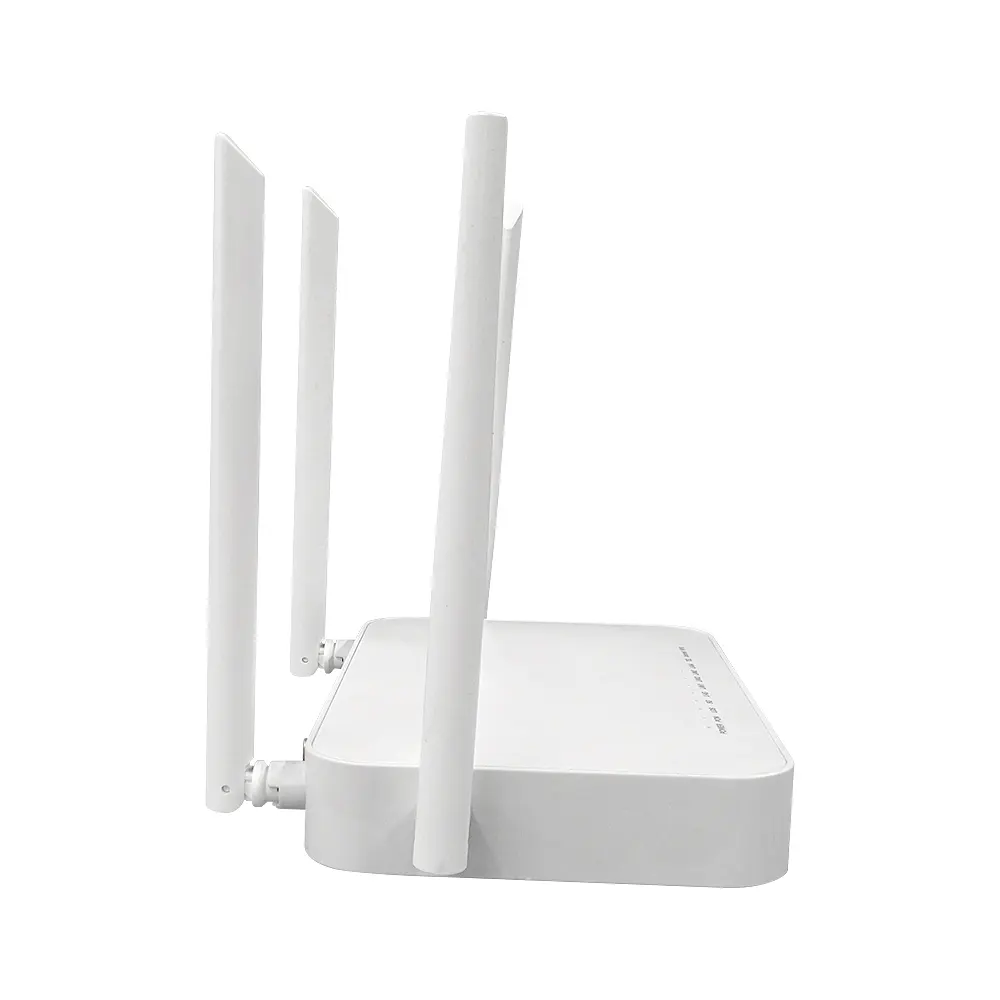

X7412A (5)
X7412A (4)
X7412A (3)
X7412A (2)
dual band ont router
dual band ont router

Overview

The X7412A is a versatile dual-band ONT router designed for Fiber-to-the-Home (FTTH) applications. This multi-ports optical network device supports both GPON and EPON networks, delivering 1.25G upstream and 2.5G downstream speeds. With 4*1GE Ethernet ports, dual-band WiFi5 AC1200 (2.4G and 5.8G), and VoIP support, it ensures robust connectivity for home and business networks.

X7412A Dual Band ONT Router Key Features

  • Dual-Band WiFi5 AC1200: 2.4G (300Mbps) and 5.8G (866Mbps) for up to 1200Mbps wireless speeds.
  • Multi-Port Connectivity: 4*1GE Ethernet ports for wired connections.
  • VoIP Support: Integrated FXS port compliant with G.711 codec for voice services.
  • Dual-Mode GPON/EPON: Auto-adapts to OLT modes (GPON/EPON) with up to 20km transmission range.
  • Advanced Management: TR-069 remote configuration, Layer 3 NAT, VLAN, QoS, and firewall support.
  • EasyMesh & WPS: Simplified WiFi setup and extended coverage with EasyMesh compatibility.

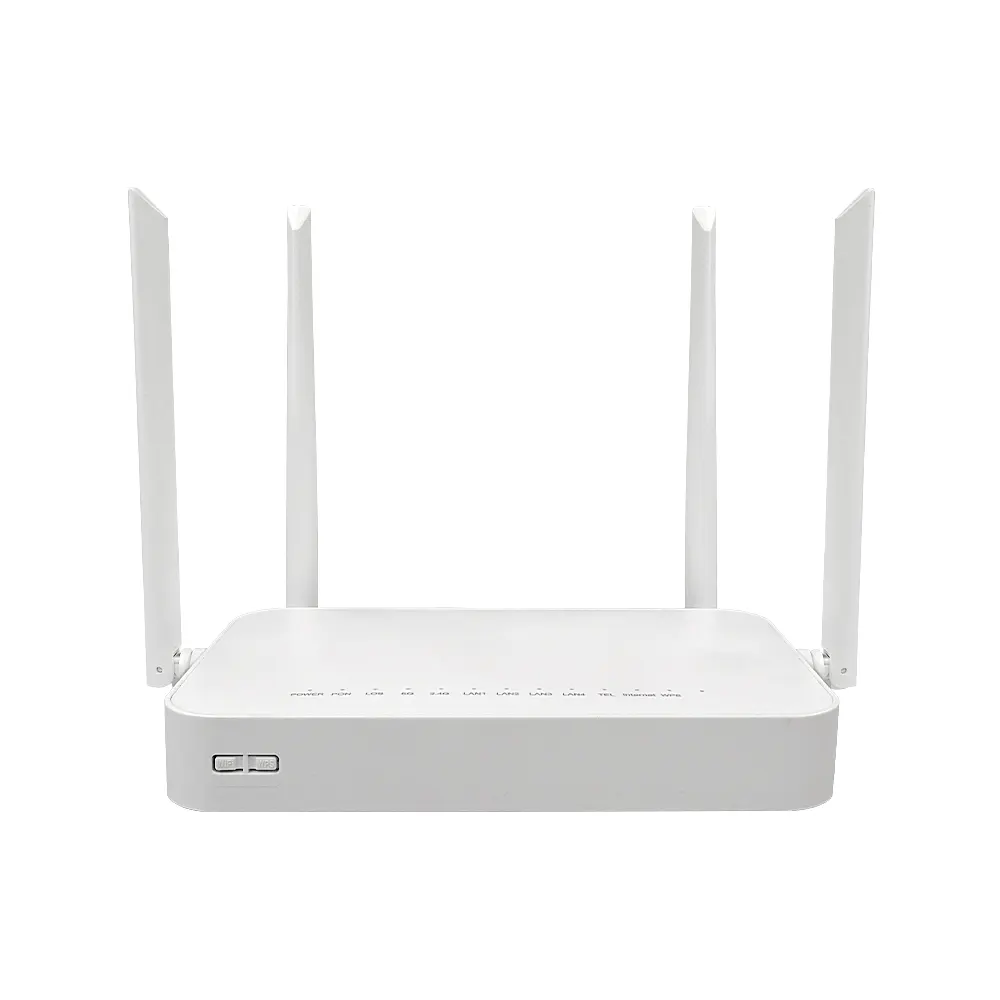

X7412A Dual Band ONT Router front and interface

Dual Band ONT Router X7412A Hardware Specifications

Interfaces 1*G/EPON (SC/APC), 4*GE, 1*FXS (RJ11), 2*USB, 2.4G/5.8G WiFi
Power Supply 100-240V AC, 50-60Hz | DC 12V/1.5A
LED Indicators POWER, PON, LOS, LAN1-LAN4, FXS1-FXS2, 2.4G, 5G
Dimensions 205mm x 155mm x 30mm (W x D x H, without antenna)
Weight 0.35Kg
Power Consumption <18W

Network Specifications

PON Interface
  • GPON: 2.488G Down / 1.244G Up
  • EPON: 1.244G Symmetric
  • Wavelength: 1310nm (Up), 1490nm (Down)
  • Sensitivity: -27dBm
Wireless (WiFi5 AC1200)
  • 2.4G: 802.11b/g/n | 300Mbps
  • 5.8G: 802.11a/n/ac | 866Mbps
  • Antenna: 4x External 2T2R (5dBi gain)

Software & Management

Protocols IPv4/IPv6, TR-069, IGMP V2/MLD, PPPoE/DHCP/Static IP
Security Firewall, DMZ, UPNP, ACL, WPA2/WPA3
Advanced Features Hardware NAT, VLAN 802.1Q, QoS 802.1P, DDNS, ALG

Environmental Specifications

Operating Temperature -20℃ ~ +50℃
Humidity 5% ~ 95% (non-condensing)



Ports

4*1GE LAN Port +1*POT+2*USB+1*DC+1*GPON/EPON Port
Wifi

2.4G 5G Dualband Wifi5 AC1200
Dimension

205mm x155mm x30mm
Net Weight

0.35kg
Mode

GPON/EPON
