Overview

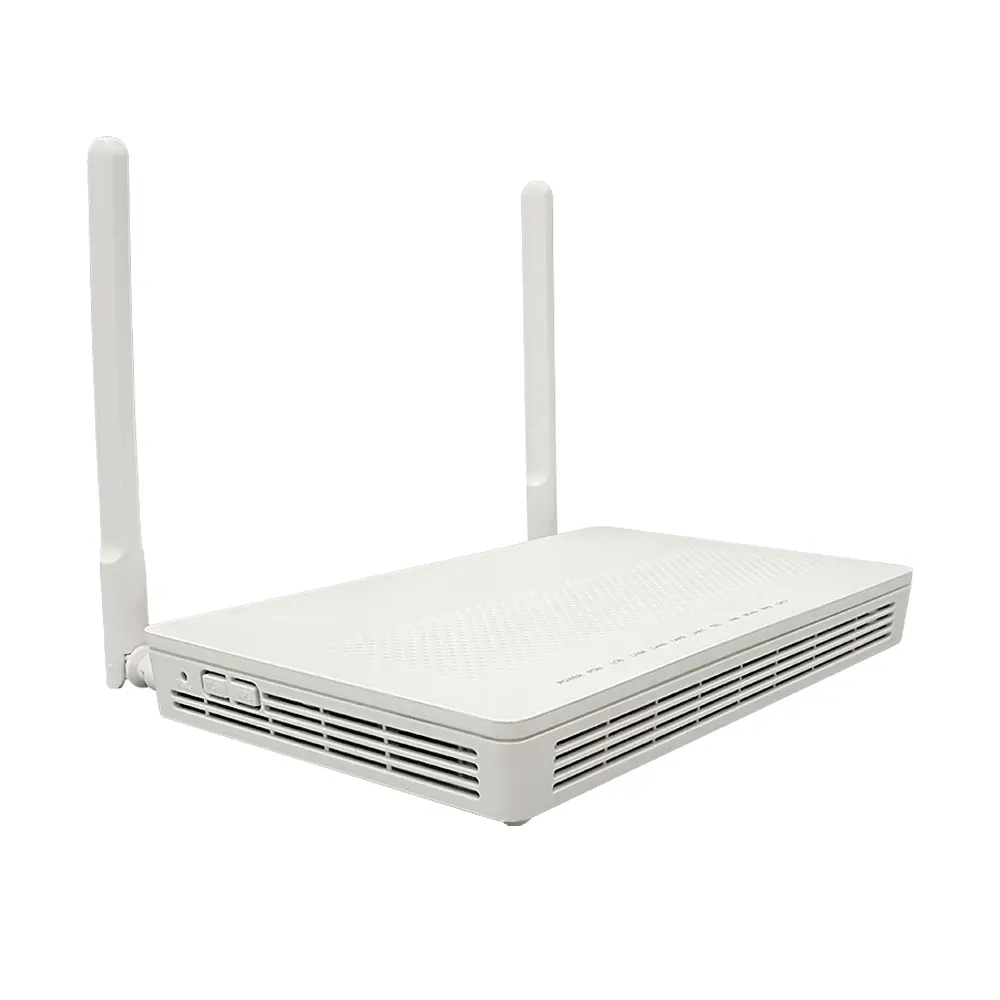

The X6412C ( HUAWEI Hg8247h5) is a highly versatile CATV WiFi ONU Modem designed for Fiber-to-the-Home (FTTH) applications. This ONU supports both GPON and EPON networks, delivering 1.25G upstream and 2.5G downstream speeds. With 1*GE and 3*FE Ethernet ports, 2.4G WiFi, VoIP, and CATV support, the X6412C is perfect for home and business networks, offering seamless connectivity and advanced features.
CATV Wifi ONU modem Key Features
- High-Speed Connectivity: 1*GE and 3*FE Ethernet ports for wired connections.
- 2.4G WiFi: Supports IEEE 802.11b/g/n with up to 300Mbps wireless speeds.
- VoIP Support: Integrated FXS port compliant with H.248/SIP protocols for voice services.
- CATV Interface: Supports CATV with high-quality signal parameters (C/N ≥43dB, C/CSO ≥62dB).
- Dual-Mode GPON/EPON: Auto-adapts to OLT modes (GPON/EPON) with up to 20km transmission range.
- Advanced Management: Supports bridge and NAT modes, VLAN, QoS, and firewall.
CATV Wifi ONU modem Hardware Specifications
| Interfaces | 1*G/EPON (SC/UPC), 1*GE, 3*FE, 1*FXS (RJ11), 1*USB, 1*CATV, 2.4G WiFi |
|---|---|
| Power Supply | 12V/1.0A External AC-DC Adapter |
| LED Indicators | WPS, Wireless, USB, Telephone, LAN1-LAN4, Optical Signal, PON, Power |
| Dimensions | 325mm x 173mm x 35mm (L x W x H) |
| Weight | 500g |
| Power Consumption | <1.5W |
CATV Wifi ONU modem Network Specifications
| PON Interface |
|
|---|---|
| Wireless (2.4G WiFi) |
|
Software & Management
| Protocols | IPv4/IPv6, TR-069, IGMP, PPPoE/DHCP/Static IP |
|---|---|
| Security | Firewall, IP/MAC filtering, WEP/WPA/WPA2 |
| Advanced Features | VLAN 802.1Q, QoS, DMZ, Port Mapping, UPnP |
Environmental Specifications
| Operating Temperature | -5℃ ~ +55℃ |
|---|---|
| Storage Temperature | -30℃ ~ +60℃ |
| Humidity | 10% ~ 90% (non-condensing) |
