Product overview

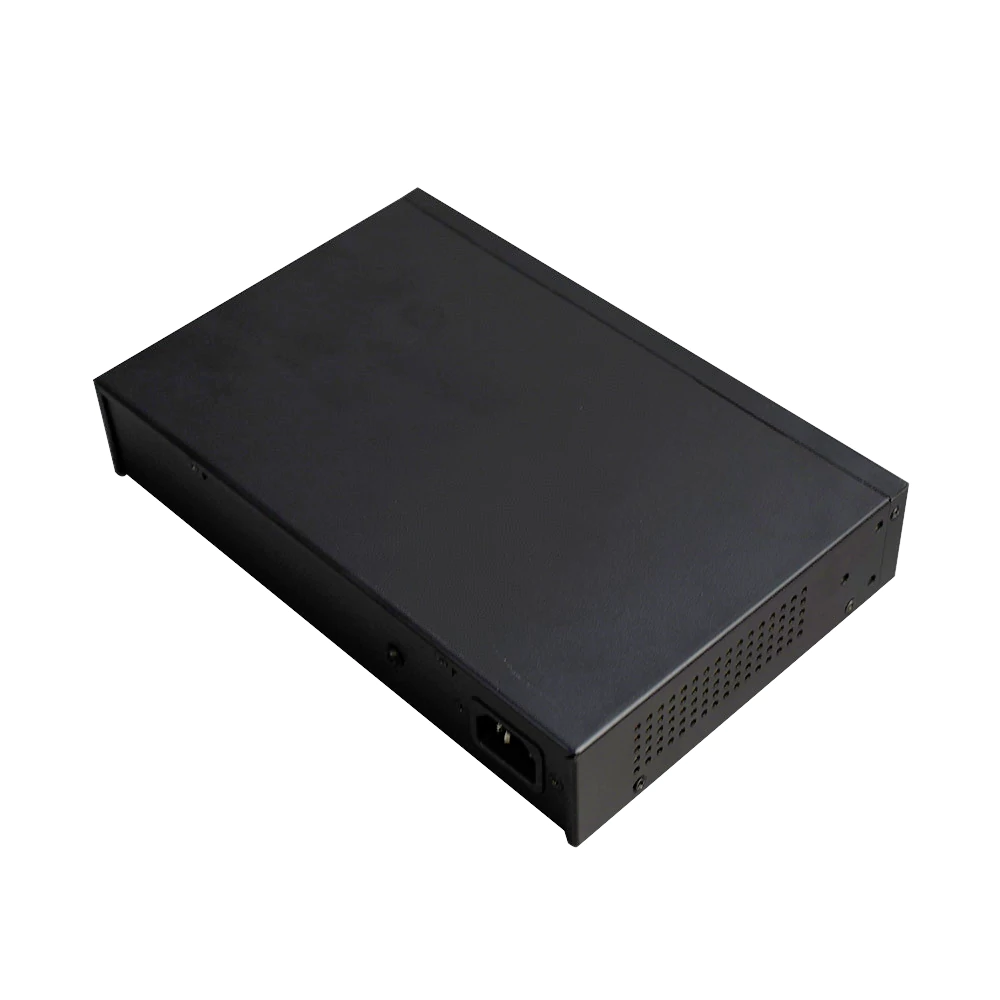

8 ports poe switch SZ5208-ACPB is a layer 2 Ethernet switch, which can meet the needs of costeffective 2.5G access and 10 Gigabit uplink for enterprise networks and operator customers. SZ5208-ACPB uses a high-performance low-power network processor, provides Gigabit line-speed forwarding performance, support Flexible forwarding strategy。The switch can be widely used in security network video surveillance, hotels, campuses, and network engineering of small and medium-sized enterprises.
Key Features
- 8 x 2.5G POE+ Ports + 1 x 10G SFP+ Uplink
- Layer 2 Managed Switch with 60Gbps Switching Capacity
- Supports IEEE 802.3af/at PoE+ for Power Delivery
- Low Power Consumption: ≤120W (Energy-Efficient Design)
- Advanced Security: Port Isolation, Storm Control, ARP Protection
- Compact Design: 230mm x 148mm x 44mm (Space-Saving)
8 ports poe switch Hardware Specifications
| Ports | 8 x 10/100/1000/2500M PoE+ Ports, 1 x 10G SFP+ |
|---|---|
| Switching Capacity | 60Gbps |
| Forwarding Rate | 44.64Mbps |
| Power Input | AC 100-240V / DC 12-75V |
| Dimensions | 230mm x 148mm x 44mm |
| Operating Temperature | -10°C to 55°C |
Software Features
8 ports poe switch Networking & Security
- IEEE 802.1X Authentication, MAC Address Binding
- Port Storm Suppression, Broadcast/Multicast Control
- Loopback Detection and Lightning Protection (6KV Common Mode)
Management & QoS
- Web/CLI/SNMP Management (Telnet/SSH Support)
- Auto MDI/MDIX, Jumbo Frame Support (9KB)
- Traffic Prioritization with SP/WRR Scheduling
Certifications & Compliance
- IEEE 802.3af/at PoE+ Compliant
- CE, RoHS Certified
- Supports IEEE 802.3bz (2.5G Base-T)
