Overview

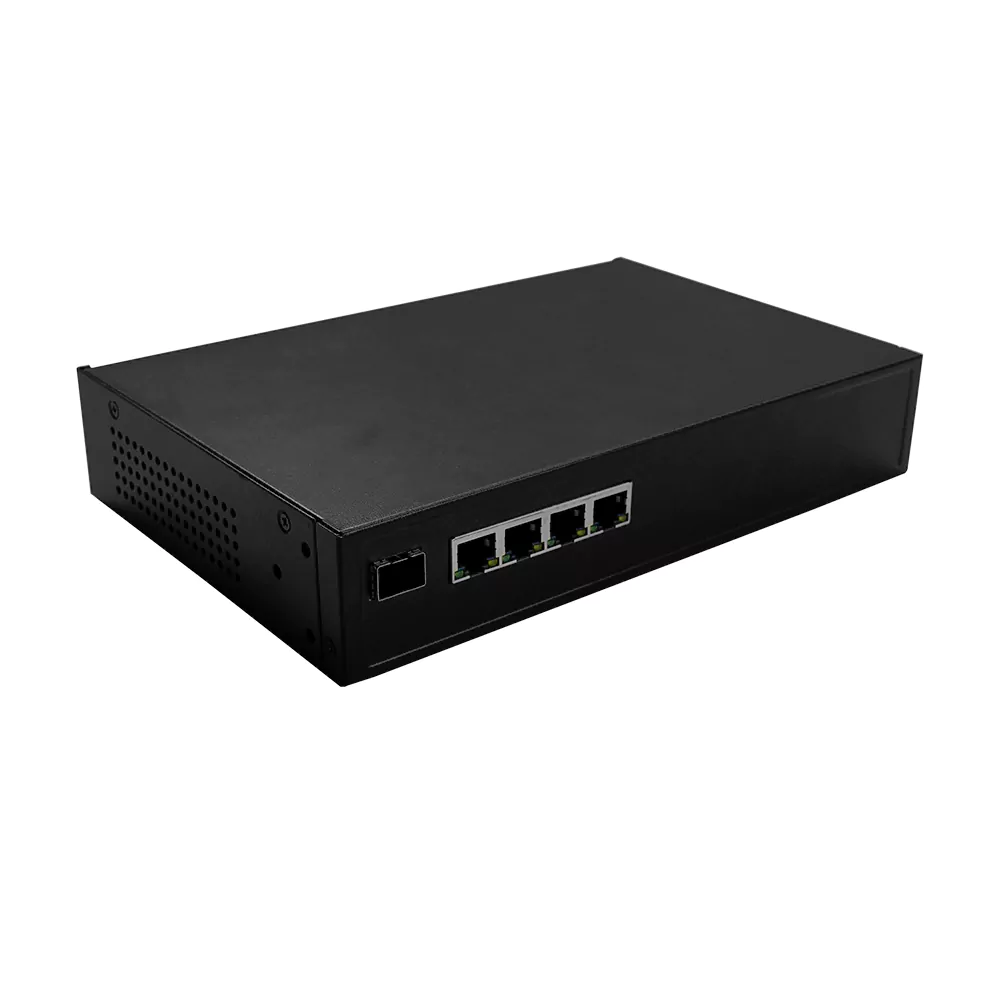

4 port network switch SZ5204-ACB is a layer 2 Ethernet switch, which can meet the needs of cost-effective 2.5G access and 10 Gigabit uplink for enterprise networks and operator customers. SZ5204-ACB uses a high-performance low-power network processor, provides Gigabit line-speed forwarding performance, support Flexible forwarding strategy。The switch can be widely used in security network video surveillance, hotels, campuses, and network engineering of small and medium-sized enterprises.
4 port network switch Key Features
- 4 x 10/100/1000/2500M Base-T Ports + 1 x 10G SFP+ Uplink
- Layer 2 Managed Switch with 40Gbps Switching Capacity
- Energy-Efficient Design: ≤24W Power Consumption
- Advanced Lightning Protection: 6KV Common Mode, 8KV Electrostatic
- Auto MDI/MDIX for Simplified Cable Management
- Compact Dimensions: 230mm x 148mm x 44mm
4 port network switch Hardware Specifications
| Ports | 4 x 10/100/1000/2500M Base-T, 1 x 10G SFP+ |
|---|---|
| Switching Capacity | 40Gbps |
| Forwarding Rate | 29.76Mbps |
| MAC Address Table | 4K Entries |
| Power Input | AC 100-240V / DC 12-75V |
| Dimensions | 230mm x 148mm x 44mm |
| Operating Temperature | -10°C to 55°C |
Software & Networking Features
Protocol Support
- IEEE 802.3bz (2.5G Base-T), 802.3x Flow Control
- Jumbo Frame Support (9KB) for High-Throughput Data
- Loopback Detection for Network Stability
Security & Reliability
- Lightning & Surge Protection: 6KV Common Mode, 8KV Contact
- Port Storm Suppression and Broadcast Rate Limiting
- Port Isolation to Prevent Unauthorized Access
Certifications & Compliance
- IEEE 802.3bz (2.5G Base-T)
- CE, RoHS Compliant
- Operating Temperature Range: -10°C to 55°C
Applications
- Security Network Video Surveillance
- Small and Medium Enterprise (SME) Networks
- Hotel and Campus Network Infrastructure
