Product Overview

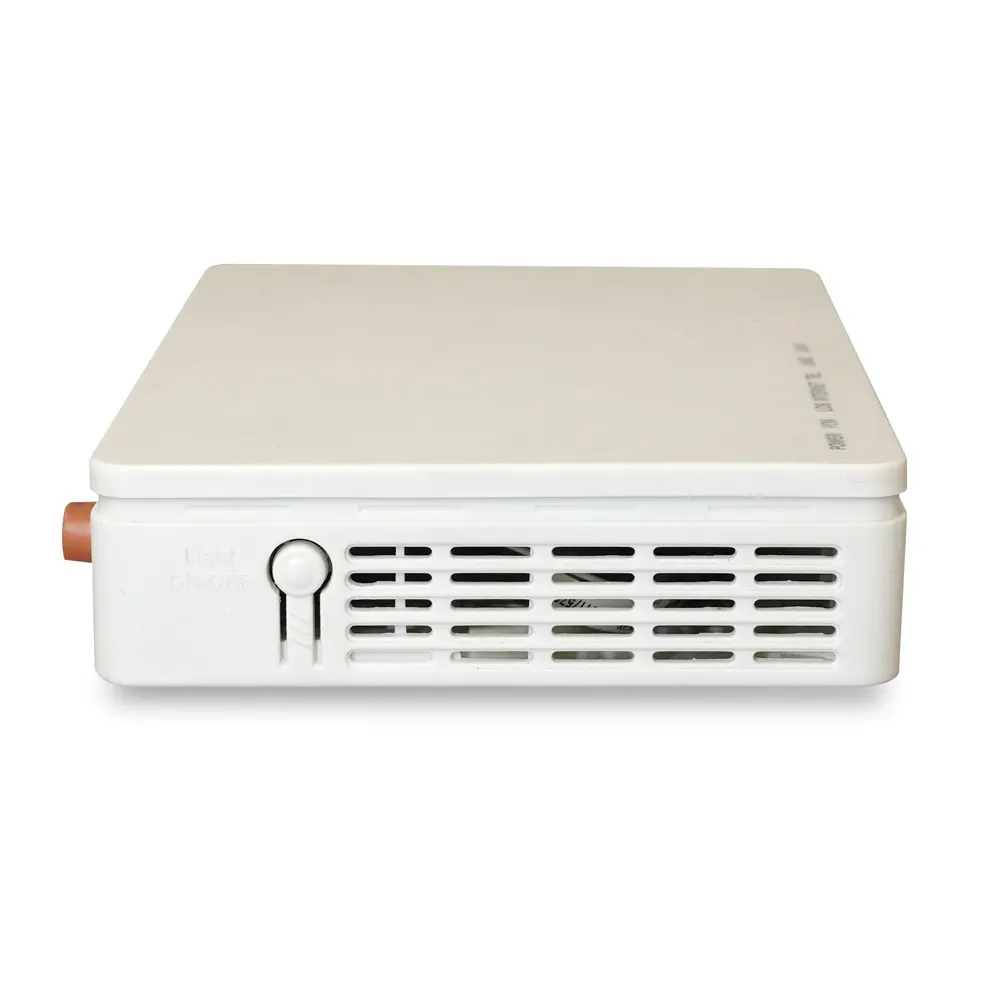

Key Features of 1GE 1FE ONU Terminal
- Dual-Mode PON Support: GPON (ITU-T G.984) and EPON (IEEE 802.3ah) compatibility.
- Multi-Port Connectivity: 1×GE (10/100/1000Mbps), 1×FE (10/100Mbps), 1×RJ11 VoIP port.
- Advanced Wireless: 802.11b/g/n Wi-Fi with 2T2R antennas (300Mbps).
- VoIP Optimization: SIP protocol, G.711/G.729 codecs, fax bypass, and multi-party conferencing.
- Energy-Efficient: <9W power consumption, 12V/1.5A external power.
Technical Specifications of 1GE 1FE ONU Terminal
| PON Interface | Parameter |
|---|---|
| Port | 1×SC/UPC single-fiber |
| Wavelength | Tx 1310nm / Rx 1490nm |
| Data Rate (GPON) | Upstream 1.244Gbps / Downstream 2.488Gbps |
| Data Rate (EPON) | Symmetric 1.25Gbps |
| Sensitivity | GPON: -28dBm / EPON: -26dBm |
Environmental & Hardware
| Operating Temperature | 0°C to 50°C |
| Dimensions | 143mm(L) × 100mm(W) × 28mm(H) |
| Weight | <0.3kg |
| Power Supply | 12V/1.5A DC |
Network Applications
- FTTH broadband access for residential and SME users.
- Triple-play services (Internet, VoIP, IPTV).
- Enterprise gateway with router/bridge mode and VLAN tagging.
Why Choose GL-GE8011U-PH?
- Future-Proof: Supports China Telecom/Unicom EPON standards.
- Easy Management: Remote OAM and batch firmware upgrades.
- Robust Security: NAT/NAPT, DHCP/static IP, and 802.1x authentication.
