Product Overview

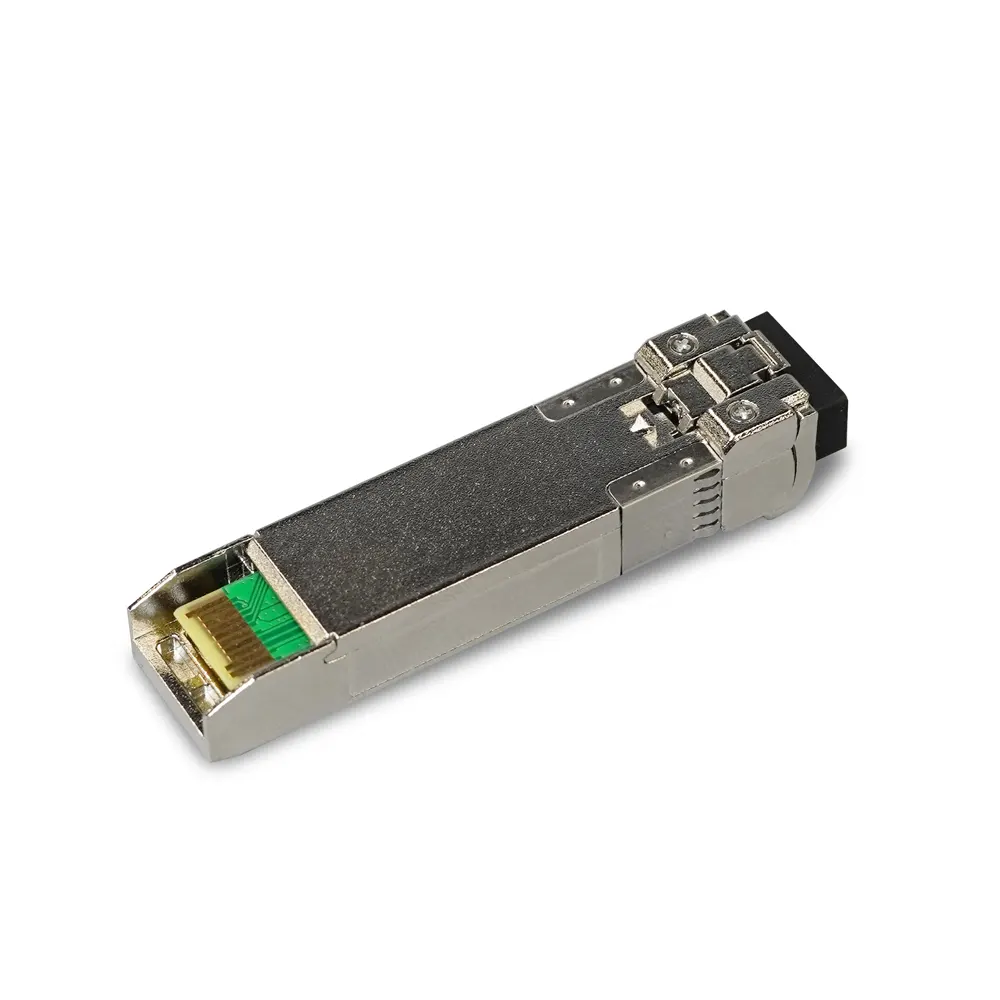

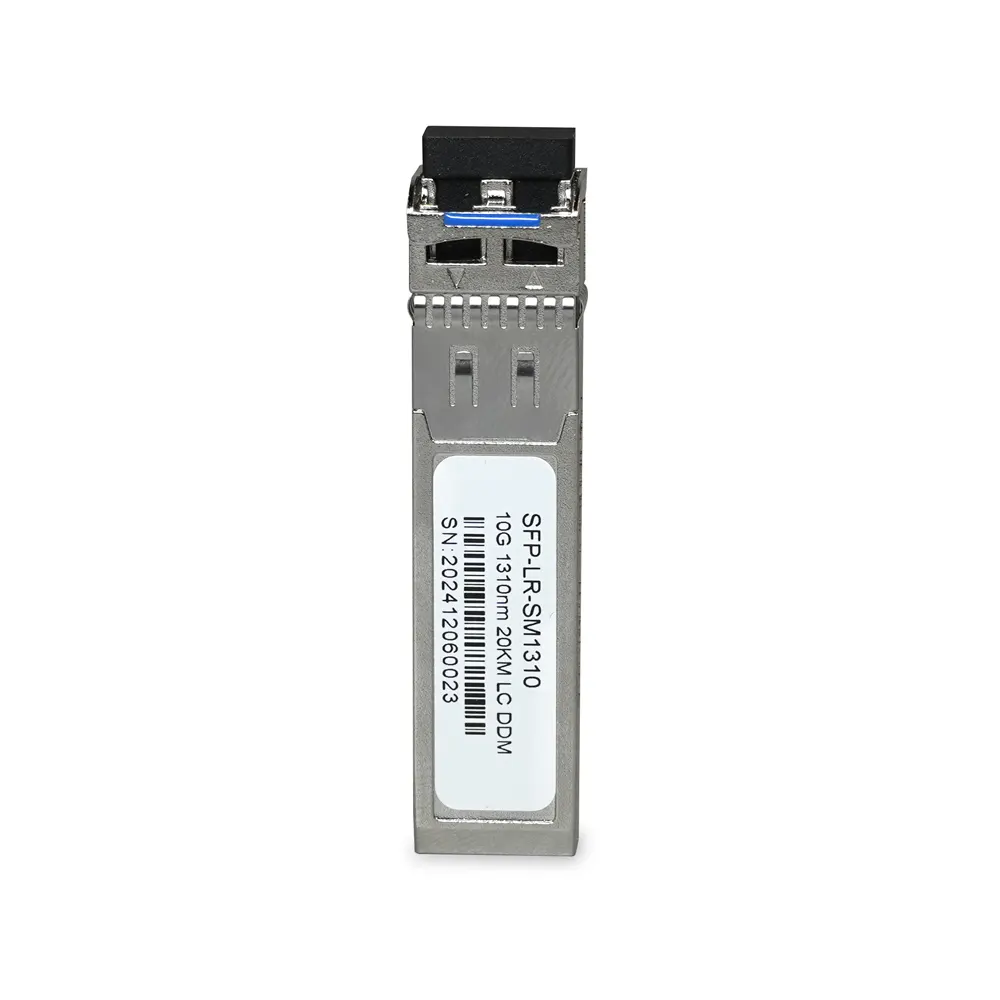

Dipper Optics’ 10 Gig SFP modules are high-performance SFP+ 10GE transceivers designed for 10G Ethernet and fiber optic applications. With a duplex LC connector and single-mode fiber support, these LC SFP modules provide reliable data transmission up to 20km. Featuring a DFB transmitter, PIN receiver, and low power dissipation, these modules are ideal for high-speed network connections.
10 Gig SFP modules Key Features
- Supports 10G Ethernet and 10G Fibre Channel applications
- Duplex LC connector for single-mode fiber
- Hot-pluggable SFP+ footprint for easy installation
- DFB transmitter and PIN receiver for high performance
- Low power dissipation (<1.2W) for energy efficiency
- Single 3.3V power supply
- RoHS compliant and lead-free
- Compliant with IEEE 802.3ae and SFP+ MSA standards
- Excellent ESD protection for durability
Technical Specifications
10 Gig SFP modules Operating Conditions
| Parameter | Unit | Min | Typical | Max |
|---|---|---|---|---|
| Storage Temperature | ℃ | -40 | 85 | |
| Operating Case Temperature (Commercial) | ℃ | 0 | 70 | |
| Operating Case Temperature (Industrial) | ℃ | -40 | 85 | |
| Power Supply Voltage | V | 3.13 | 3.3 | 3.47 |
| Supply Current | mA | 360 | ||
| Transmission Distance | km | 10 |
Optical Characteristics
| Parameter | Unit | Min | Typical | Max |
|---|---|---|---|---|
| Transmitter Wavelength | nm | 1260 | 1310 | 1360 |
| Receiver Sensitivity | dBm | -14.5 | ||
| Mean Launched Power | dBm | -3 | 3 | |
| Optical Return Loss Tolerance | dB | -15 |
Applications
- 10GBASE-LR/LW Ethernet
- 10G Fibre Channel
- High-speed data center connections
- Telecommunications and network infrastructure
Compliance & Certification
- Compliant with IEEE 802.3ae
- Compliant with SFP+ MSA (SFF-8431 Rev4.1)
- Compliant with SFF-8472 Rev11.0
- RoHS compliant and lead-free
- ESD protection: MIL-STD-883E Method 3015.7, IEC 61000-4-2
- Laser safety: FDA 21CFR 1040.10, EN60825-1,2
Ordering Information
| Part Number | Description |
|---|---|
| SFP+ 10G 1310nm 20KM | 10G SFP+, 1310nm, 10km, LC connector, Commercial temperature |
| SFP+ 10G 1310nm 20KM | 10G SFP+, 1310nm, 10km, LC connector, Industrial temperature |
